Reproducing the Optimal Parameters-based Geographical Detector (OPGD)

1 Method Overview & Reproduction Scope

1.1 Core Idea

The geographical detector measures spatial stratified heterogeneity (SSH): the tendency for a response to be more alike within strata of an explanatory variable than between them. Its core statistic, the Q value (q = 1 − SSW/SST), reads as the share of the response's variance that a variable's spatial strata explain — 0 when the strata carry no signal, 1 when they explain it entirely. Unlike a regression coefficient it needs no linearity assumption and works on categorical and stratified continuous variables alike.

The catch is that a continuous variable has no natural strata: it must be discretised first, and the Q value depends heavily on how — which breaking method (equal, natural, quantile, geometric, standard-deviation) and how many intervals. Choose badly and a genuinely important variable looks weak. The optimal parameters-based geographical detector (OPGD) removes that arbitrariness: for every continuous variable it searches the grid of (method × break-number) and keeps the combination that maximises the Q value, then runs the detectors on those optimal strata.

• Research problem: the plain geographical detector's result is an artefact of the analyst's discretisation choice, so two studies of the same data can disagree on which driver matters.
• One-line contribution: OPGD selects the discretisation (and the spatial unit size) that best expresses each variable's spatial stratified heterogeneity, making the four detectors — factor, interaction, risk and ecological — reproducible and comparable.
• Why it matters: a single optimised run answers four questions at once — which variables drive the response, which pairs interact, which zones are high-risk, and whether two drivers differ significantly — with no model tuning and no linearity assumption.

1.2 Method Logic

OPGD wraps the classical geographical detector (Wang et al. 2010) in two parameter optimisations — spatial discretisation and spatial scale — and then exposes the four detectors. It sits between the original detector and the localised methods that later build on it:

The schematic below is the whole method on one page:

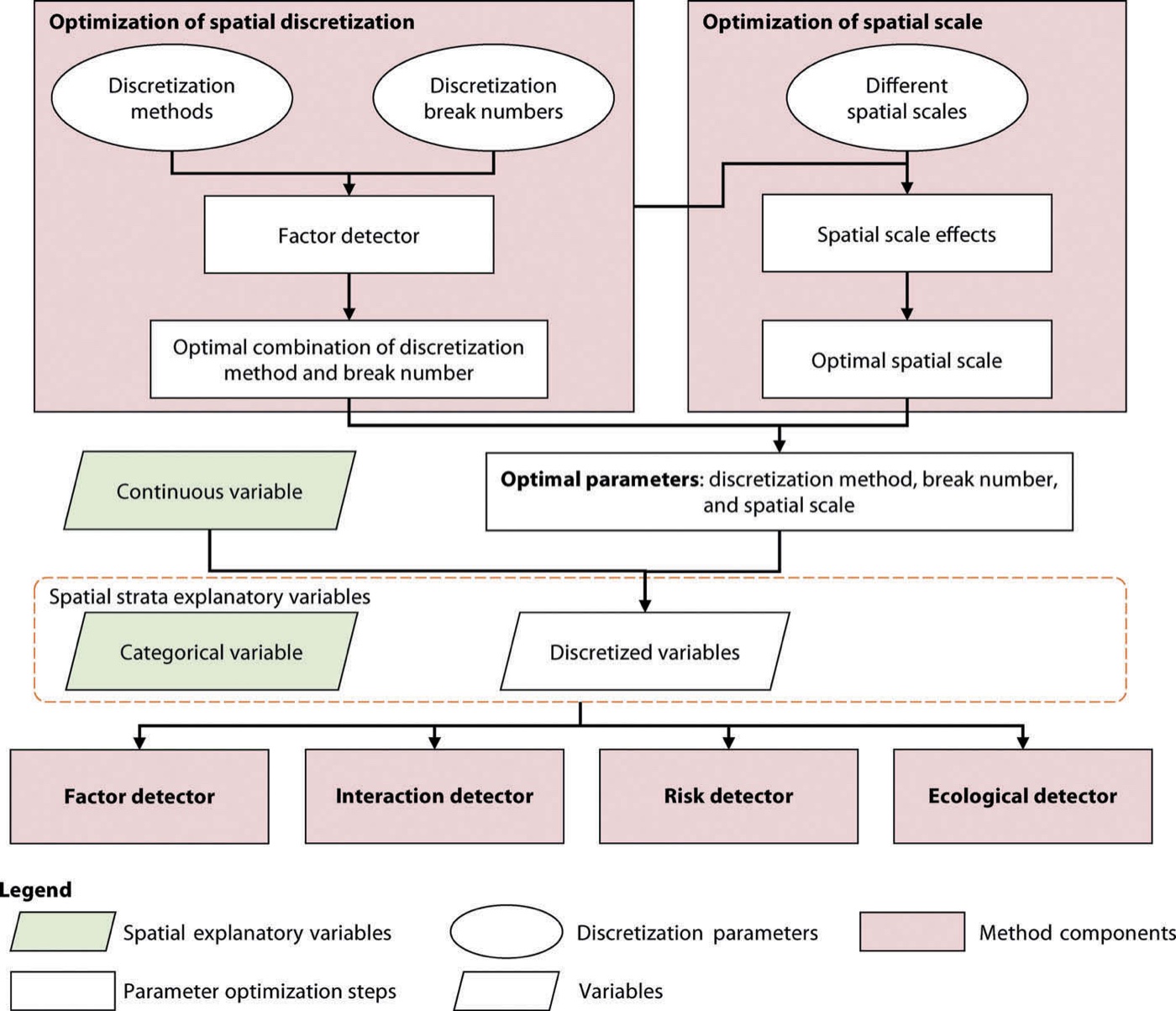

Published reference · OPGD OPGD paper Fig. 2 — the model. Left: for each continuous variable, a grid of discretisation methods × break numbers is scored by the factor detector and the highest-Q combination is kept. Right: the same idea over spatial unit sizes. The optimal parameters feed the discretised variables into the four detectors (factor, interaction, risk, ecological). Song, Wang, Ge & Xu (2020), GIScience & Remote Sensing.

Key concepts and equations

• Q value — the factor detector (Wang et al. 2010):
  q = 1 − SSW / SST = 1 − (1/Nσ²) Σ_h N_hσ_h²
  SST is the total variance of the response; SSW is the variance that remains within the strata of a variable. q ∈ [0,1] is the share the strata explain, with an F/non-central test of significance — Wang et al. (2010) doi.
• Optimal discretisation (the OPGD enhancement): for a continuous variable, compute q for every (method, n-intervals) pair over the methods {equal, natural, quantile, geometric, sd} and a break-number range, and keep the pair with the highest q. The variable is then cut at those breaks before any detector runs — Song et al. (2020) PDF.
• Optimal spatial scale (SESU): re-run the model across a series of spatial unit sizes and adopt the scale where the Q values stabilise, so the finding is not an artefact of the grid resolution.
• The four detectors, all off the same optimal strata: the factor detector ranks variables by q; the interaction detector compares q(x₁∩x₂) against q(x₁) and q(x₂) and types the pair into five classes; the risk detector t-tests the response means between strata to name high/low zones; the ecological detector F-tests whether two variables differ significantly in their impact.

The whole analysis in one call

The GD package's gdm() function does everything above in a single call — optimal discretisation of the continuous variables, then all four detectors, plus the plots. The block below is the vignette's quick-start (GD vignette, §1.3); paste it into R to run the entire NDVI analysis at once. The rest of this page unpacks that one call into transparent, config-driven steps that write one CSV per detector.

## install and library the package
install.packages("GD", dep = TRUE)
library(GD)

## Example 1 — NDVI: ndvi_40
## optional discretisation methods: equal, natural, quantile, geometric, sd, manual
discmethod <- c("equal", "natural", "quantile")
discitv    <- c(4:6)

## "gdm" runs optimal discretisation + all four detectors + plots in one step.
## Here Climatezone and Mining are categorical; Tempchange and GDP are continuous.
ndvigdm <- gdm(NDVIchange ~ Climatezone + Mining + Tempchange + GDP,
               continuous_variable = c("Tempchange", "GDP"),
               data = ndvi_40,
               discmethod = discmethod, discitv = discitv)   # ~3 s
ndvigdm        # printed summary: factor, interaction, risk, ecological
plot(ndvigdm)  # all detector figures

1.3 Reproduction Scope

Everything tagged Demo run on this page regenerates from the scripts in this folder; everything tagged Published reference is a static comparison image from the source article. The demo runs end to end with R 4.6.0 and GD 10.9, and the built-in test reproduces the published NDVI ranking (Song et al. 2020): Precipitation and Climate zone are the dominant drivers of vegetation change.

Published applications of the OPGD model

How to use this page

• To reproduce the demo: this folder ships the R scripts (R/), the configuration (config/project-config.R) and the tests (tests/); the data live inside the GD package. Run Rscript run-all.R test, then Rscript run-all.R; every output on this page regenerates.
• To apply OPGD to your own problem: read §2.3 (data contract), point INPUT_FILE at your CSV and name the response, categorical and continuous columns in the §2.2 config, then run the same scripts (§4.1).
• To write the paper: §4.2 maps every result file to a manuscript element and gives the section skeleton the published applications share.

2 Setup, Structure & Data Contract

2.1 Environment & Dependencies

The pipeline is pure R and wraps the CRAN GD package — the reference implementation of the geographical detector and OPGD. Two packages cover everything; the demo datasets ship inside GD itself, so a fresh machine needs no external download.

# Required — the OPGD reference implementation (ships the demo data)
install.packages("GD")

# Required for the figures
install.packages("ggplot2")

2.2 Project Structure & Configuration

One entry script drives everything: run-all.R runs the seven pipeline steps, the five figure scripts, or the two tests, and every step writes to data/derived/, results/, tables/ or figs/. Each step reads what the previous one wrote, so a single step can be re-run after a config change without repeating the whole pipeline.

OPGD/
├── opgd.html                      # this guide
├── run-all.R                      # entry point: full run, single steps, figures, test
├── assets/                        # figures shown in this guide (web copies)
├── config/project-config.R        # the ONLY file to edit for a new domain
├── R/
│   ├── 00-config.R, 01-helpers.R  # library layer: paths, IO, GD guard
│   ├── 10-prepare-data.R          # load the analysis table, report roles
│   ├── 20-optimal-discretization.R# the OPGD enhancement (optidisc)
│   ├── 30-factor-detector.R       # relative importance (gd)
│   ├── 40-interaction-detector.R  # pairwise interaction (gdinteract)
│   ├── 50-risk-detector.R         # sub-region means + t-test (gdrisk, riskmean)
│   ├── 60-ecological-detector.R   # F-test between variables (gdeco)
│   ├── 70-sesu-scale.R            # spatial-scale effects (gdm over ndvi_*)
│   ├── 90-tables.R                # LaTeX tables + session info
│   └── p01 … p05                  # figure scripts
├── data/reference/                # provenance of the built-in GD data
├── tests/                         # test-01 reproduces the paper; test-02 properties
├── env/                           # requirements.md, session-info.txt
├── results/  tables/  figs/       # generated output, never hand-edited

Main configuration file

DATASET     <- "ndvi_40"                     # a GD built-in table (or set INPUT_FILE)
INPUT_FILE  <- NULL                          # e.g. "data/raw/your.csv" to use your own data

RESPONSE    <- "NDVIchange"                   # the dependent variable
CATEGORICAL <- c("Climatezone", "Mining")    # already-discrete explanatory vars
CONTINUOUS  <- c("Tempchange", "Precipitation",
                 "GDP", "Popdensity")        # these get optimal discretisation

DISC_METHODS   <- c("equal","natural","quantile","geometric","sd")
DISC_INTERVALS <- 3:7                        # break numbers to search

SESU_DATASETS <- c("ndvi_20","ndvi_30","ndvi_40","ndvi_50")  # spatial-scale series
SESU_SIZES    <- c(20, 30, 40, 50)

Key parameters and where they come from

2.3 Data Contract

The pipeline consumes one table, one row per spatial unit: a numeric response, a set of categorical explanatory variables, and a set of continuous ones. Units can be anything area-referenced — grid cells (this demo), road segments, counties, regions.

Example analysis-ready table

3 Reproduction Pipeline, Results & Validation

3.1 Pipeline Execution

Seven pipeline steps, five figure scripts and two verification tests run from one entry point. Each step writes to results/, tables/, figs/ or data/derived/ and reads what the previous step wrote, so any step can be re-run in isolation after a config change.

cd OPGD                    # this folder
Rscript run-all.R test     # 1. verify the code reproduces the published ranking
Rscript run-all.R          # 2. full pipeline on the built-in ndvi_40 data

Rscript run-all.R 20 30    # re-run single steps (10 20 30 40 50 60 70 90)
Rscript run-all.R figures  # only the figure scripts

Project : opgd-demo
Domain  : vegetation change (NDVI)
== Step 1/7  Prepare data ======================================
   713 rows, 7 columns; 2 categorical + 4 continuous
== Step 2/7  Optimal parameter discretisation ==================
   Precipitation  best: equal     x 7 intervals  -> Q = 0.8694
   Tempchange     best: sd        x 7 intervals  -> Q = 0.3266
== Step 3/7  Factor detector ===================================
   dominant variable: Precipitation (Q = 0.869); weakest: GDP (Q = 0.099)
== Step 4/7  Interaction detector ==============================
   strongest interaction: Tempchange n Precipitation -> Q = 0.916 (Enhance, bi-)
== Step 5/7  Risk detector =====================================
   104 stratum pairs tested; 82 significantly different (t-test)
== Step 6/7  Ecological detector ===============================
   14 of 15 variable pairs differ significantly in their impact
== Step 7/7  Spatial-scale effects (SESU) ======================
   unit size 40: mean Q = 0.401 across 6 variables
Finished in 2.3 s

3.2 Reproduce the Published Values

Before trusting any number on your own data, confirm the code reproduces the published method. run-all.R test runs the OPGD optimisation and factor detector on the paper's own ndvi_40 data and checks the published ranking — Precipitation and Climate zone are the dominant drivers of NDVI change (Song et al. 2020).

== test-01  Reproduce Song et al. (2020) ndvi_40 factor detector ==========
   Precipitation dominates (Q > 0.80)            pass
   Climate zone strong (Q > 0.80)                pass
   Precipitation ranks above Climate zone        pass
   GDP is the weakest driver (Q < 0.15)          pass
   every Q is a valid fraction in [0,1]          pass
   Q: Precip=0.869  Climate=0.822  Temp=0.327  Pop=0.196  GDP=0.099
   PASS — the template reproduces the published OPGD ranking

== test-02  Geographical-detector properties ============================
   perfectly separated strata give Q near 1             pass
   random strata give Q near 0                          pass
   Q is invariant to a linear rescale of the response   pass
   ...
   6 passed, 0 failed

3.3 Core Analytical Steps

Seven stages, each with the same anatomy: purpose → code → output → result → how to read it. Steps are numbered 1–7 on this page and the script files share those numbers (Step 2 runs R/20-optimal-discretization.R, and so on).

Rscript run-all.R 10

== Step 1/7  Prepare data ======================================
   loaded built-in GD dataset 'ndvi_40'
   713 rows, 7 columns
   response: NDVIchange
   2 categorical: Climatezone, Mining
   4 continuous: Tempchange, Precipitation, GDP, Popdensity
   wrote results/variable-summary.csv (7 rows)
   analysis set: 713 units, 6 explanatory variables

Step 2 · the OPGD enhancement

Optimal discretisation — the best strata for each continuous variable

What this step does

For every continuous variable it computes the factor-detector Q across the grid of five methods × break numbers 3–7, keeps the combination with the highest Q, and cuts the variable at those breaks. This is the step that makes the whole analysis reproducible — the discretised table it writes feeds every detector.

Code

R/20-optimal-discretization.R — the search (via GD::optidisc)

for (v in CONTINUOUS) {
  od <- optidisc(as.formula(paste(RESPONSE, "~", v)), data = d,
                 discmethod = DISC_METHODS, discitv = DISC_INTERVALS)[[1]]
  bestq <- max(od$qv.matrix, na.rm = TRUE)   # highest Q over method x n-intervals
  d[[v]] <- cut(d[[v]], unique(od$itv), include.lowest = TRUE)  # optimal strata
}

terminal

Rscript run-all.R 20

Example output

Variable	Best method	Intervals	Q value
Precipitation	equal	7	0.869
Tempchange	sd	7	0.327
Popdensity	quantile	7	0.196
GDP	quantile	7	0.099

results/optimal-discretization.csv — the chosen method, break number and resulting Q for each continuous variable.

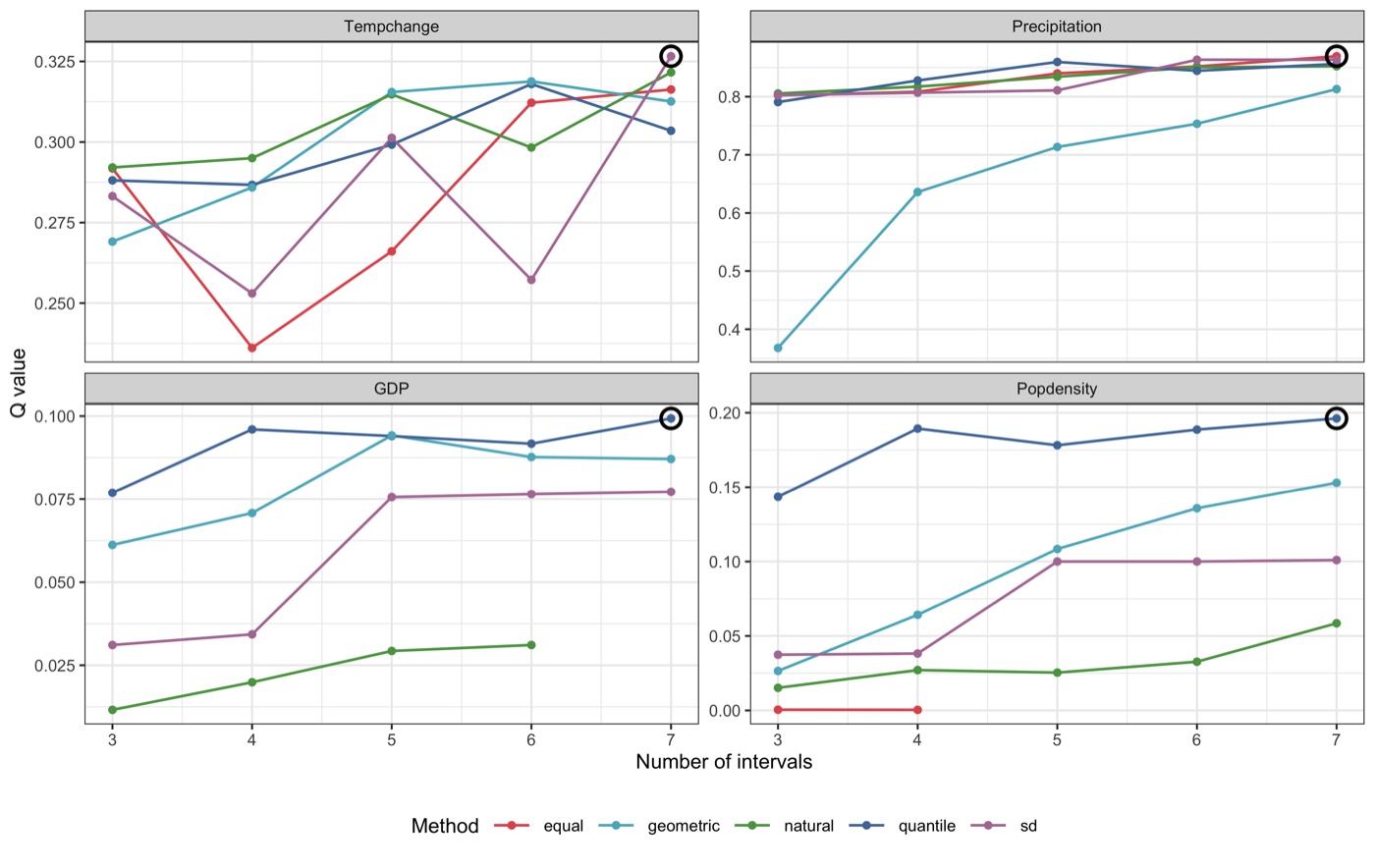

Demo run fig01 — Q value against the number of intervals, one line per method, faceted by variable. The circled point is the maximum (the chosen combination). Precipitation is high and stable; GDP stays low whatever the binning.

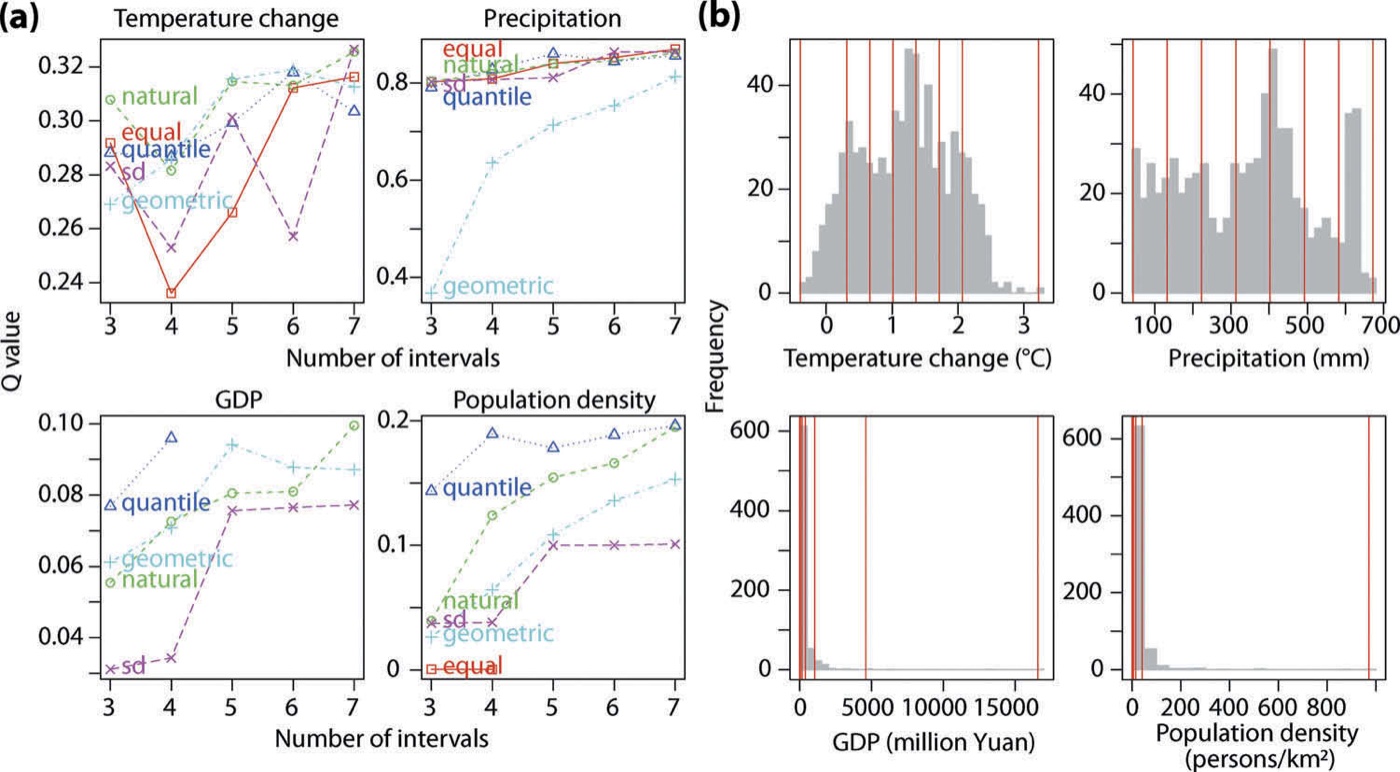

Published reference · OPGD OPGD paper Fig. 5 — the same optimisation panel in Song et al. (2020): (a) Q against intervals per method, (b) the histograms with the optimal breaks. The demo reproduces the shape, including geometric's slow climb on Precipitation.

The choice is not neutral — report it

Precipitation's Q ranges from 0.37 (geometric, 3 intervals) to 0.87 (equal, 7) across the grid — a factor of more than two, from the binning alone. State the search grid and the chosen method/breaks in the Methods section; that is what makes a geographical-detector result comparable across studies.

How to read this result

• The optimal method differs per variable. Precipitation prefers equal breaks, temperature standard-deviation breaks, the skewed GDP and population quantile breaks — one global rule would have mis-scored at least one of them.
• Higher break numbers usually help, but not always. Most curves rise toward 7 intervals; where a curve dips (temperature under equal breaks at n=4) the search simply avoids it. Cap the range by sample size — too many strata leave too few observations each.
• A flat, low curve is a real finding. GDP never exceeds Q≈0.10 under any binning: it is genuinely a weak driver of NDVI change here, not a victim of bad discretisation.

Checkpoint

results/optimal-discretization.csv holds one row per continuous variable, and data/derived/discretized-data.csv (713 rows) carries the optimal strata for Steps 3–6.

Step 3 · the core result

Factor detector — relative importance of every variable

What this step does

Runs the factor detector on the optimally discretised table: the Q value of every variable, with a significance test, ranked. This is the headline of most geographical-detector papers — which drivers explain the spatial pattern of the response.

Code

R/30-factor-detector.R — via GD::gd

dcz <- read.csv("data/derived/discretized-data.csv")   # optimal strata from Step 2
g   <- gd(NDVIchange ~ ., data = dcz)                   # factor detector
g$Factor                                                # variable, qv, sig

terminal

Rscript run-all.R 30

Example output

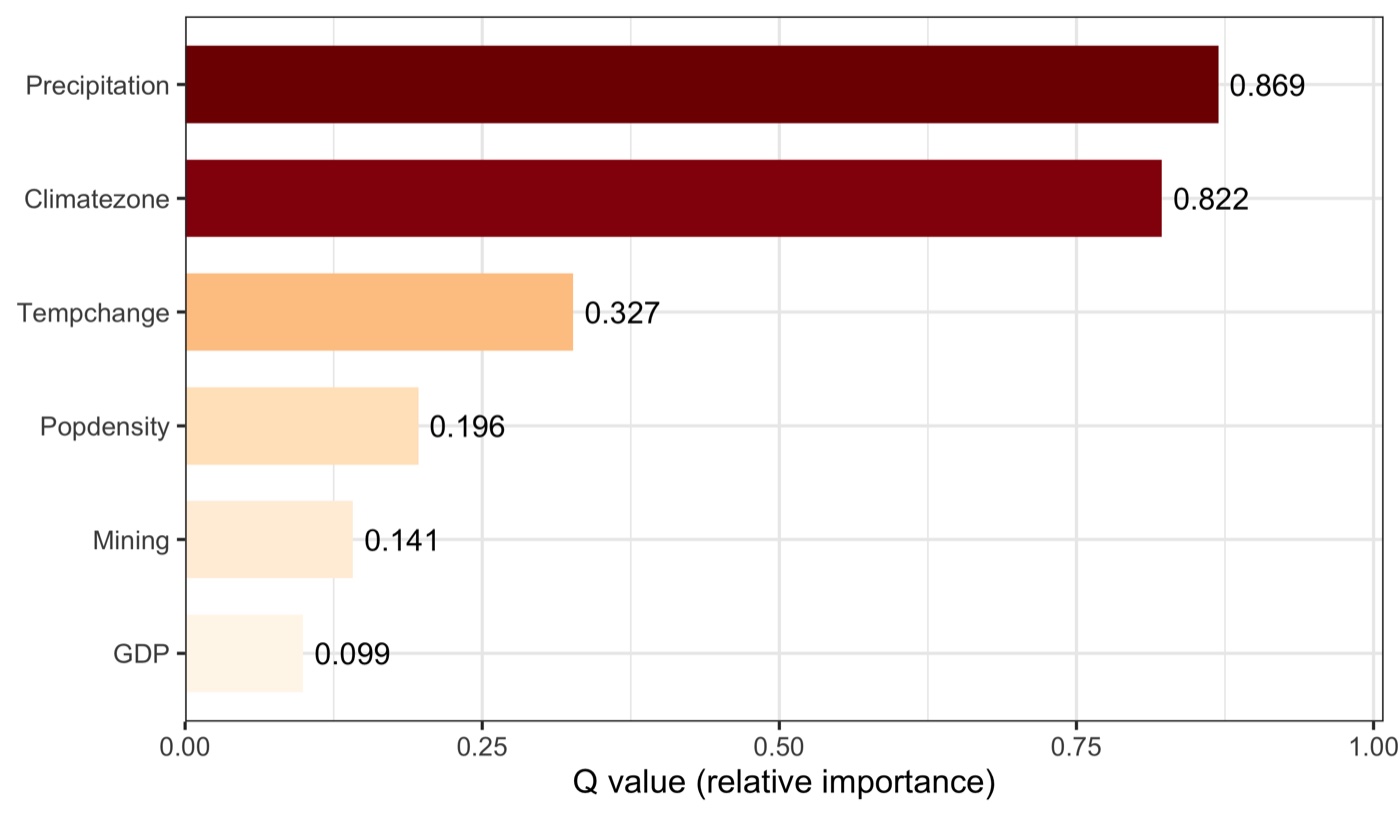

Demo run fig02 — relative importance (Q) per variable. Precipitation (0.869) and Climate zone (0.822) dominate; GDP (0.099) is weakest.

Variable	Q value	Significance (p)	Rank
Precipitation	0.869	2.6e−10	1
Climatezone	0.822	7.3e−10	2
Tempchange	0.327	3.1e−10	3
Popdensity	0.196	2.2e−10	4
Mining	0.141	6.7e−10	5
GDP	0.099	9.6e−10	6

results/factor-detector.csv — every variable is significant (p < 1e-9); the Q value is what separates them.

Paper reference

Song et al. (2020) report Precipitation and Climate zone as the leading drivers of NDVI change in this region, with the socioeconomic variables (GDP, population) weak — the ranking this demo reproduces (PDF).

How to read this result

• Q is a share of variance explained, not a correlation. Precipitation's 0.869 means its (optimal) strata account for 87% of the spatial stratified heterogeneity of NDVI change — no sign, no linearity, just explained structure.
• Significance and magnitude are different questions. Every variable here is statistically significant, yet GDP's Q is only 0.10. A significant but small Q means "real but minor"; read the number, not just the star.
• Climate leads, economy trails — the physical reading. That precipitation and climate zone tower over GDP and population says vegetation change in this arid region is climate-driven; the socioeconomic drivers matter only locally (they resurface in the interaction detector, Step 4).

Checkpoint

results/factor-detector.csv holds 6 ranked rows; the console names Precipitation as dominant (Q = 0.869) and GDP as weakest (0.099).

Step 4

Interaction detector — which pairs of variables amplify each other

What this step does

For every pair it computes the joint Q of the two variables overlaid and compares it with the two single Q values, classifying the pair into one of five types (bi-enhance, nonlinear-enhance, uni-weaken, nonlinear-weaken, independent). Interactions routinely exceed the strongest single driver.

Code

terminal

Rscript run-all.R 40

Example output

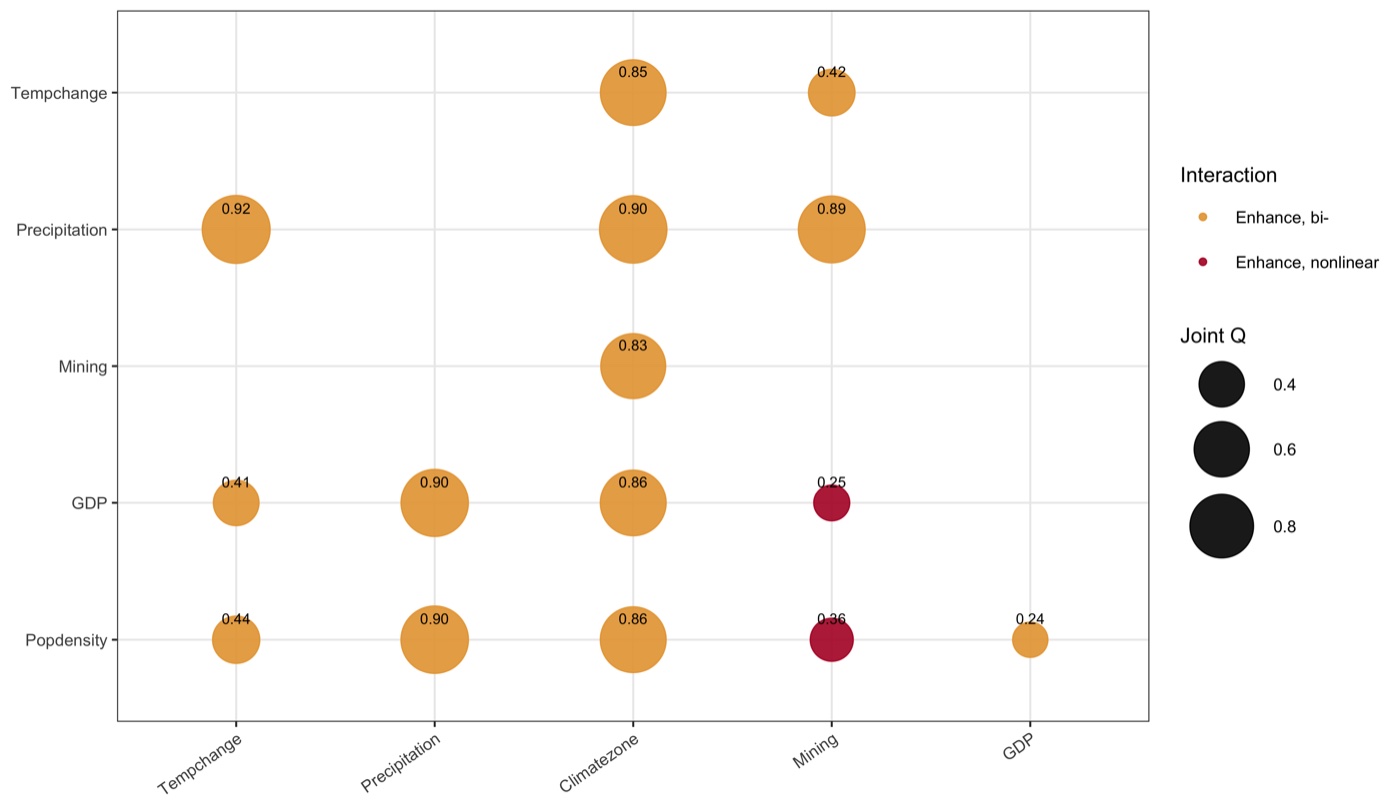

Demo run fig03 — bubble size is the joint Q of a pair; colour is the interaction type. Precipitation ∩ Temperature (0.92) is the strongest; the two Mining pairs with GDP / population (red) are nonlinear-enhance.

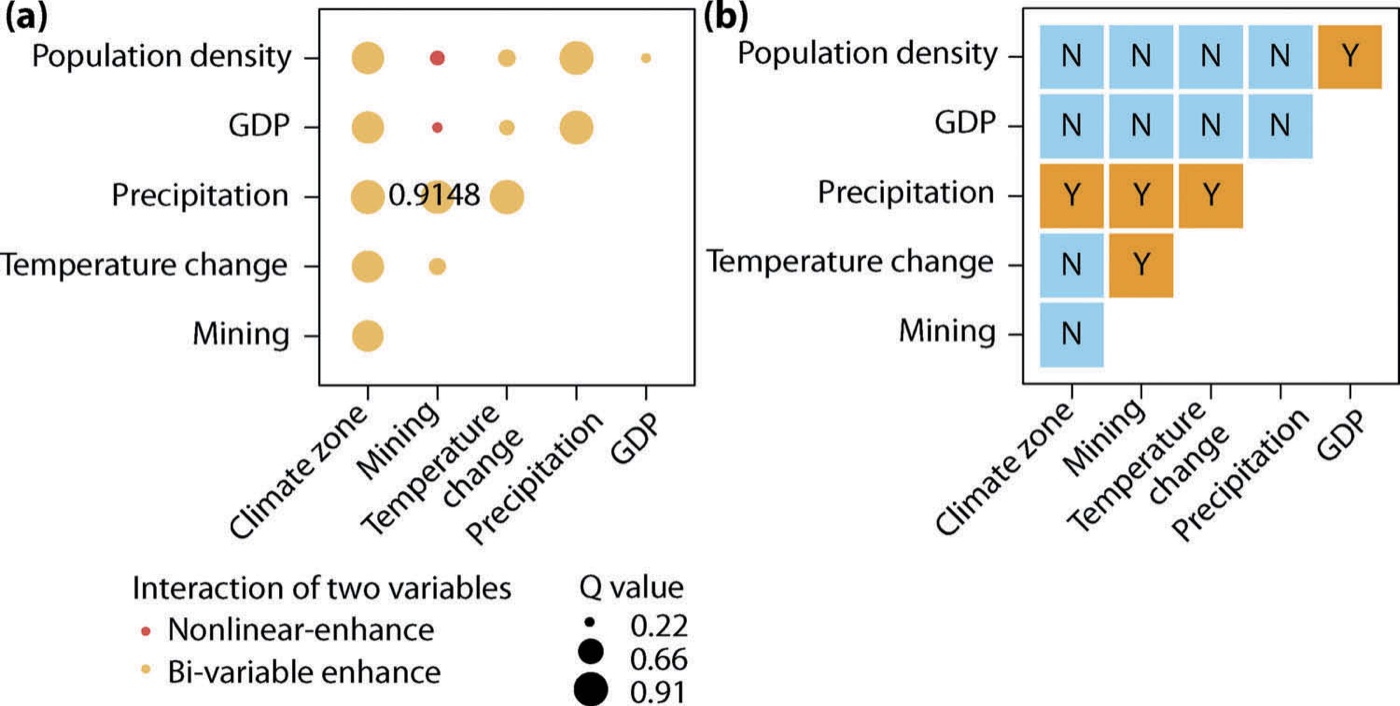

Published reference · OPGD OPGD paper Fig. 8 — (a) interaction bubble matrix, (b) ecological detector. The demo reproduces the pattern: Precipitation ∩ Temperature strongest (paper labels 0.9148; demo 0.916), and mining pairs turning nonlinear-enhance.

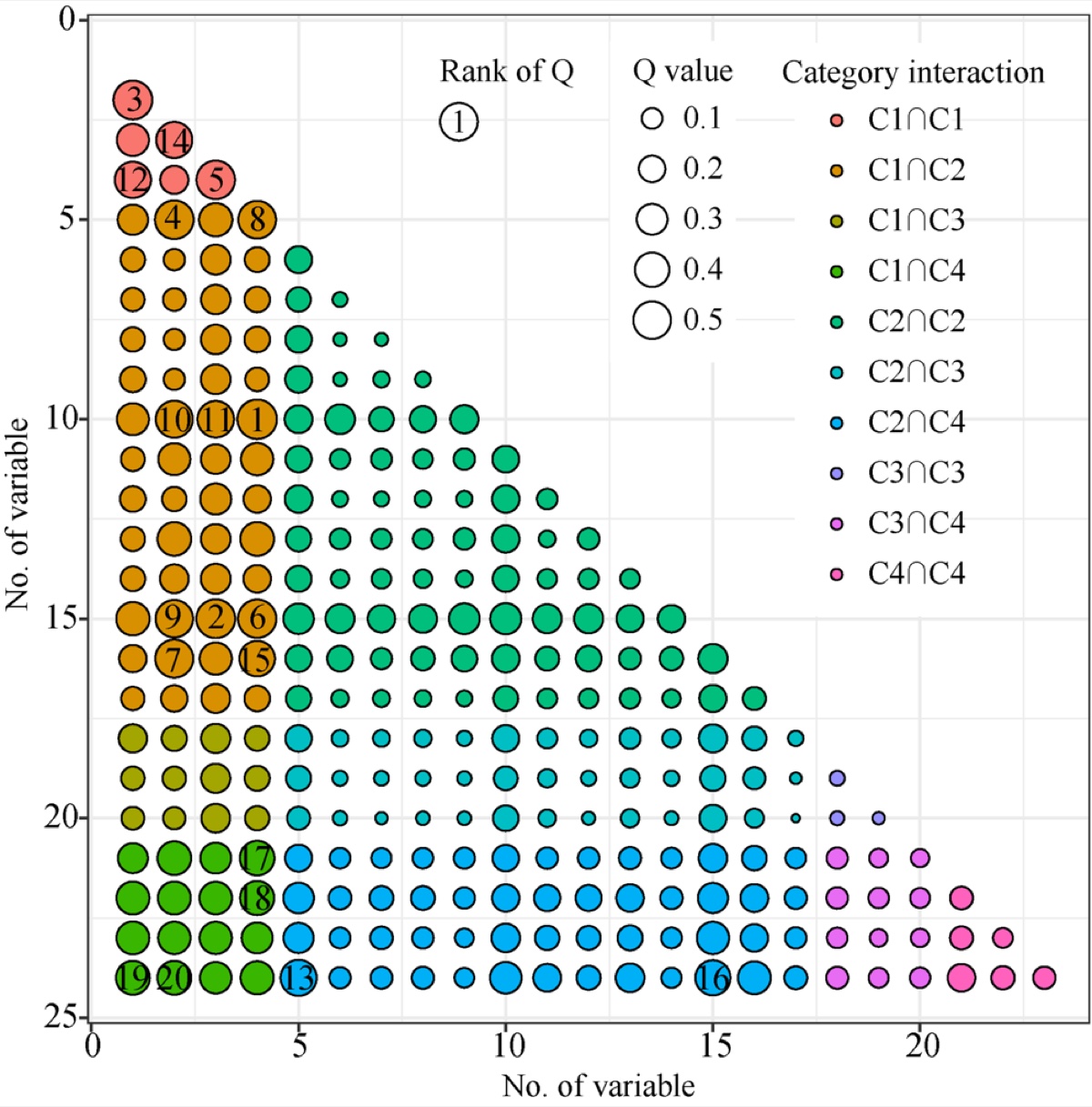

Published reference · road case Song et al. (2018) Fig. 8 — the same interaction bubble matrix at scale: the pavement-deformation case runs the interaction detector over 23 variables, sized by joint Q, ranked, and coloured by which of four category groups (C1–C4) the two variables belong to. It shows the demo's small 15-pair matrix is exactly how a full geographical-detector study reports interactions. Remote Sensing 10(11):1696.

How to read this result

• Every pair enhances — the general rule of this method. The joint Q of two variables is almost always higher than either alone, so a pair explains more than a sum of parts would suggest. The question is how, not whether.
• Bi-enhance vs nonlinear-enhance is the key distinction. 13 pairs are bi-enhance (joint Q above both singles but below their sum); two — Mining ∩ GDP (0.248) and Mining ∩ Population (0.359) — are nonlinear-enhance (joint above the sum), meaning mining's effect on NDVI only emerges alongside the socioeconomic variables.
• Weak singles can matter jointly. GDP alone is the weakest driver (0.099), yet Precipitation ∩ GDP reaches 0.900 — the socioeconomic signal is real but conditional on climate, exactly the kind of finding a single-variable ranking hides.

Checkpoint

results/interaction-detector.csv holds all 15 pairs; the strongest is Temperature ∩ Precipitation (Q = 0.916), and 2 of 15 are nonlinear-enhance.

Step 5

Risk detector — which zones are high vs low, and is the difference real

What this step does

riskmean() gives the mean response within each stratum of every variable; gdrisk() t-tests every pair of strata and flags the significant differences. Together they turn a Q value into an actionable map of where the response is high.

Code

terminal

Rscript run-all.R 50

Example output

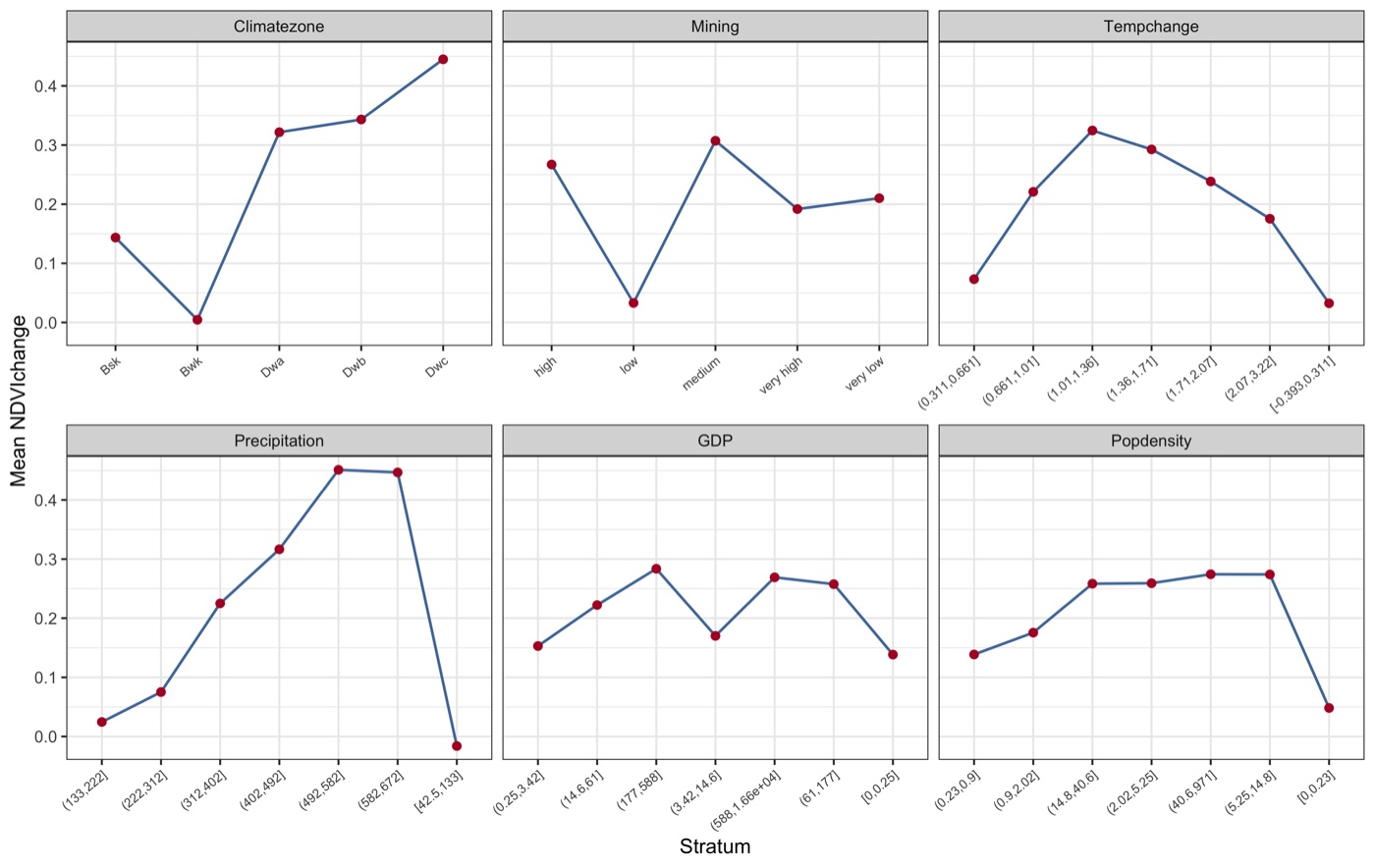

Demo run fig04 — mean NDVI change per stratum, one panel per variable. Climate zone rises from Bwk (0.005) to Dwc (0.445); precipitation rises with rainfall then plateaus around 0.45; the socioeconomic variables are flatter.

Console output

== Step 5/7  Risk detector =====================================
   wrote results/risk-means.csv (38 rows)
   wrote results/risk-detector.csv (104 rows)
   104 stratum pairs tested; 82 significantly different (t-test)

How to read this result

• Read the direction, not just the magnitude. Climate zone's Q says it matters; the risk means say how — the humid Dwc zone has the highest NDVI gain (0.445), the arid Bwk the lowest (0.005). That ordering is the actionable output.
• The plateau is a signal. NDVI gain rises with precipitation up to ~500 mm then stops climbing — beyond that, water stops being the limiting factor. A monotone Q value cannot show this; the risk means can.
• Significance guards against reading noise. 82 of 104 stratum pairs differ significantly; the 22 that do not (mostly among the socioeconomic strata) are differences you should not report as real.

Checkpoint

results/risk-means.csv (38 stratum means) and results/risk-detector.csv (104 t-tests) are written; 82 pairs are significant.

Rscript run-all.R 60

== Step 6/7  Ecological detector ===============================
   wrote results/ecological-detector.csv (15 rows)
   14 of 15 variable pairs differ significantly in their impact

Step 7

Spatial scale (SESU) — is the result robust to the unit size

What this step does

Re-runs the model on the same case aggregated to a series of spatial unit sizes (20–50 km, the built-in ndvi_* series) and reads where the Q values stabilise. The scale where the curves flatten is the recommended analysis unit.

Code

terminal

Rscript run-all.R 70

Example output

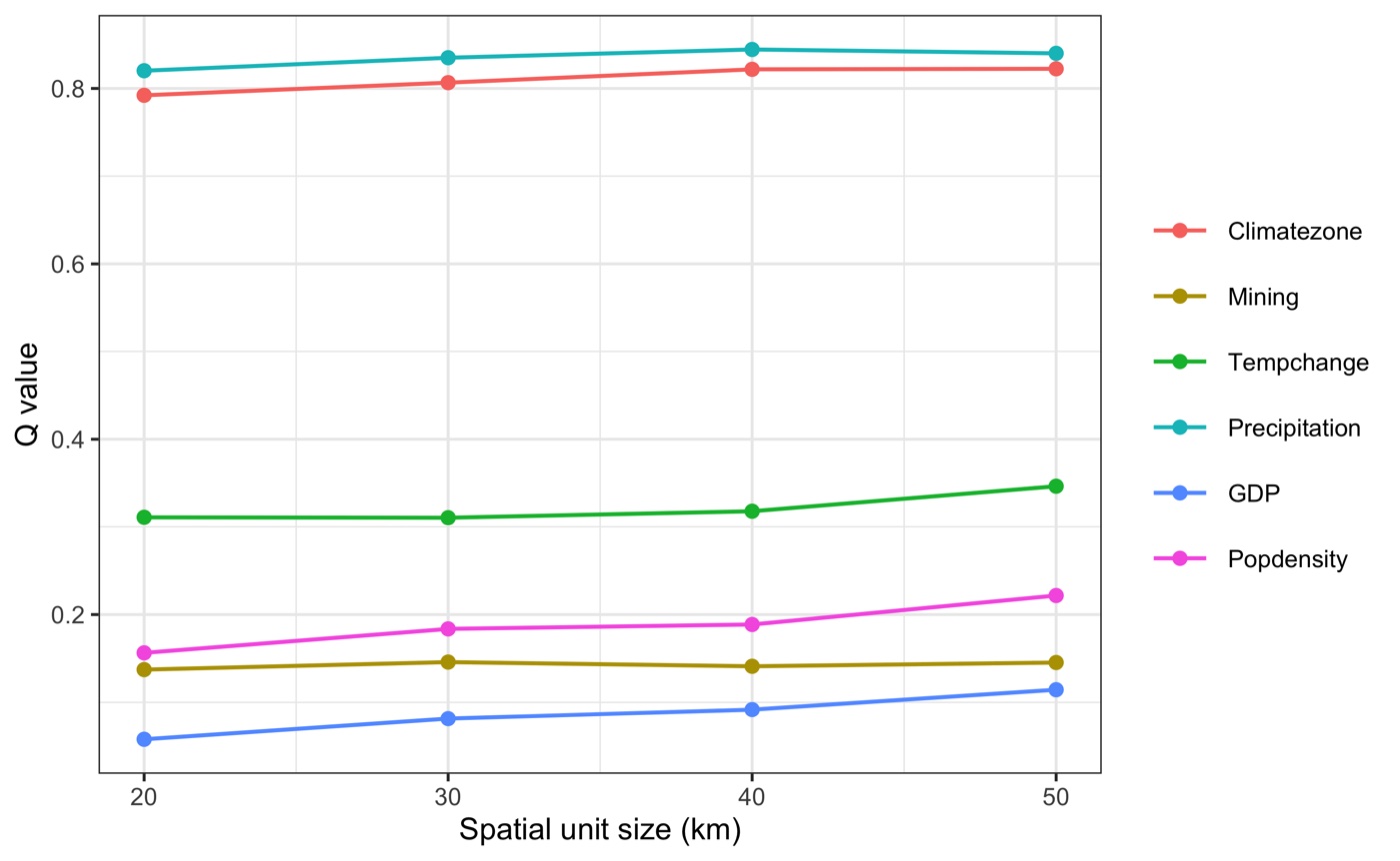

Demo run fig05 — Q value against spatial unit size, one line per variable. The rankings are stable across scales; Precipitation and Climate zone stay on top and the curves flatten from ~40 km, the recommended unit.

How to read this result

• Stability of the ranking is the robustness claim. The order of variables does not change from 20 to 50 km, so the factor-detector conclusion is not an artefact of one grid resolution — the reassurance a reviewer asks for.
• Slightly rising Q with coarser units is the modifiable areal unit effect. Aggregation smooths within-unit variance, nudging Q up; report the scale you chose and why, not just the single-scale number.

Checkpoint

results/sesu-scale.csv holds Q for 6 variables × 4 unit sizes; the mean Q settles near 0.40 from 40 km.

3.4 Reading the Results Together

The four detectors are one story told from four angles: who matters (factor), with whom (interaction), where (risk), and how confidently (ecological). Read alone, each can mislead; read together, they are hard to argue with.

4 Adaptation, Writing & Reproducibility

4.1 Port to Your Domain

The geographical detector moves between domains without touching the analytical scripts: the config declares the table and the variable roles, and every detector is generic. The published applications span the range:

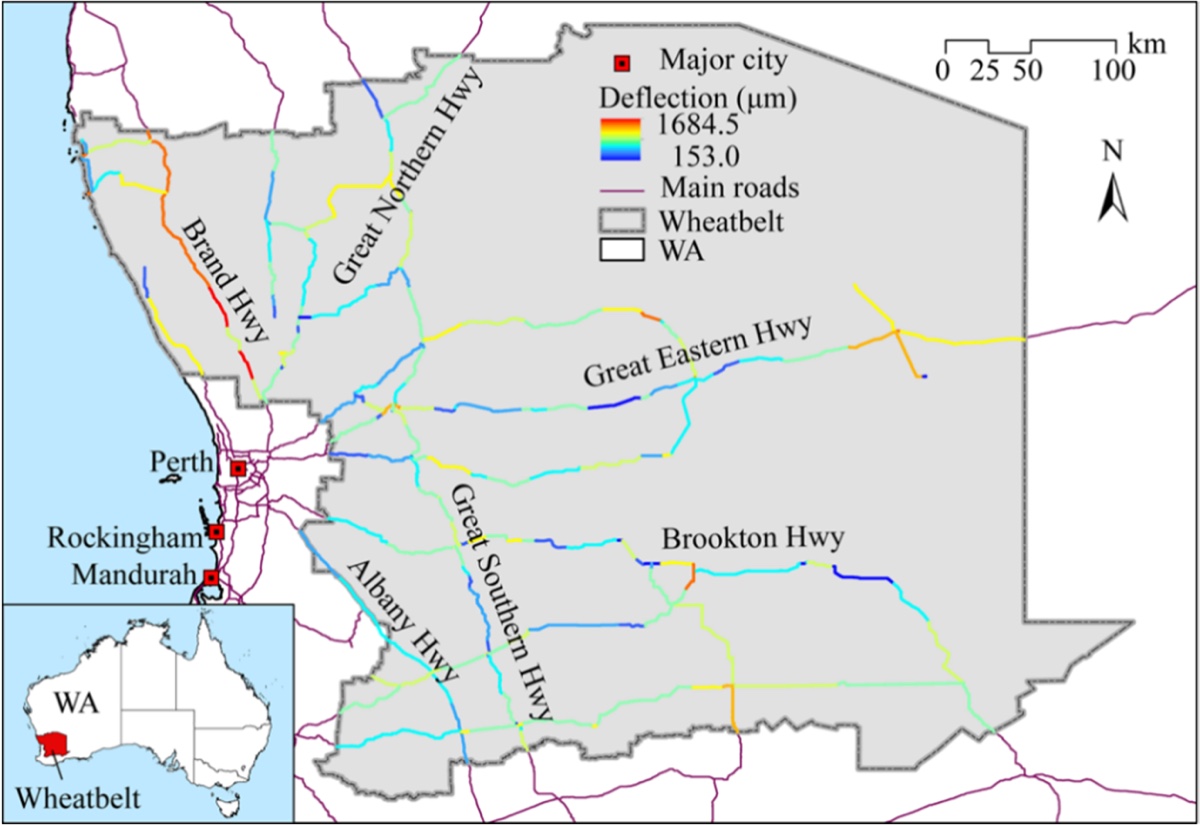

Published reference · road case Song et al. (2018) Fig. 1 — the road-deformation application: pavement deflection across the Western Australia road network, analysed with the same OPGD detectors on line-segment units. The GD package's road case comes from this study. Remote Sensing 10(11):1696.

What to edit

1. config/project-config.R — point INPUT_FILE at your CSV (or name a built-in DATASET), set RESPONSE, and split the drivers into CATEGORICAL and CONTINUOUS. Choose the DISC_METHODS and DISC_INTERVALS search grid. The single adaptation point of §2.2.
2. For spatial-scale optimisation, either supply your own multi-scale tables or set RUN_SESU <- FALSE; SESU needs the aggregated series, which for a custom INPUT_FILE you build yourself.
3. Nothing else: run Rscript run-all.R test once (a sanity check on the built-in case), then Rscript run-all.R, and read results/factor-detector.csv before drafting.

4.2 Write the Paper

The published OPGD applications share one manuscript architecture: a Methods section that states the discretisation search grid and the four detectors, a Results section that mirrors the pipeline steps, and every number pulled from a results/ file so nothing is retyped. The download ships the code-and-config layer; the tables regenerate from R/90-tables.R.

Manuscript skeleton (shared by the published applications)

1  Introduction        — spatial stratified heterogeneity; the discretisation
                          problem; the OPGD contribution (3 aims)
2  OPGD model          — 2.1 Q value (factor detector; no case data)
                          2.2 Parameter optimisation (discretisation grid; SESU)
                          2.3 Interaction, risk and ecological detectors
3  Case & data         — study area, response, explanatory variables, unit
4  Results             — 4.1 optimal discretisation (Fig: Q vs intervals)
                          4.2 factor detector (ranking + significance)
                          4.3 interaction detector (bubble matrix)
                          4.4 risk detector (zone means)
                          4.5 ecological detector + scale robustness
5  Discussion          — co-dominance, conditional drivers, mechanism, limits
6  Conclusions         — 6-8 sentences mapping to the aims

Results-to-manuscript map

4.3 Final Reproducibility Package

Everything an editor, reviewer, or reader needs sits in this folder; the three blocks below are what a submission's data-and-code availability statement should point to.

References & credits

Demo outputs were generated by the scripts in this folder using the CRAN GD package. Reference figures are reproduced from the cited articles for comparison and are © their authors and publishers.

1. Wang J-F, Li X-H, Christakos G, et al. (2010). Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun region, China. IJGIS 24(1):107–127. doi:10.1080/13658810802443457
2. Song Y, Wright G, Wu P, et al. (2018). Segment-based spatial analysis for assessing road infrastructure performance using monitoring observations and remote sensing data. Remote Sensing 10(11):1696. doi:10.3390/rs10111696 (source of the GD road case and the study-area figure on this page)
3. Song Y, Wang J, Ge Y, Xu C (2020). An optimal parameters-based geographical detector model enhances geographic characteristics of explanatory variables for spatial heterogeneity analysis. GIScience & Remote Sensing 57(5):593–610. doi:10.1080/15481603.2020.1760434 · PDF (source of Figs 2, 5, 8 and the NDVI ranking reproduced on this page)
4. The GD package (CRAN): cran.r-project.org/package=GD · vignette (the reference implementation this template wraps)
