Spatial information explained

Background

Spatial validation governs both the training and the evaluation of geospatial prediction models, from spatial statistics to geospatial artificial intelligence, and informs the choice among competing models.^[2] Research on spatial validation addresses the metrics used to quantify performance, the cross-validation designs used to partition data, and the effects of spatial features of the data on validation outcomes. Block cross-validation partitions the study area into contiguous blocks so that spatially proximate observations do not appear in both training and test sets, reducing the optimistic bias of random cross-validation when samples are spatially dependent.^[3][4]

Existing validation methods fall into three groups: global accuracy and error metrics such as RMSE, mean absolute error and R²; spatial explainability methods such as Shapley additive explanations and GeoShapley, which attribute predictions to predictors and to location;^[14] and methods based on the spatial structure of residuals. The last group rests on the principle that a well-performing spatial model leaves spatially random residuals. Moran's I of residuals detects remaining spatial autocorrelation,^[13] the degree of spatial interpretability measures the share of spatially stratified variance a model explains,^[5] and geocomplexity-based diagnostics relate errors to the complexity of local spatial patterns.^[8]

The paper identifies three gaps that SIE was designed to address: existing spatial validation metrics are computed under random cross-validation, and none is designed for block cross-validation; there was no formal measure of the quantity of spatial information in spatial data; and no metric quantified the total spatial information a model explains across the range of scales at which spatial dependence operates.^[1] Mutual information, a nonparametric measure of statistical dependence that has been used in geographic information science to characterize spatial association and stratification,^[9] provides the measure of spatial information on which SIE is built.

Definition

Spatial information

Let Y be a spatially distributed variable and S its spatial location, represented by spatial units. With H(Y) the Shannon entropy of Y, the spatial information in Y is the reduction in its uncertainty attributable to location:^[1]

where H(Y | S) is the uncertainty that remains once the spatial unit is known. A strongly autocorrelated variable carries high spatial information, because location is predictive of value; a spatially random variable carries none. The ratio θ(Y) = I(Y; S) / H(Y) expresses spatial information as a share of total entropy. Because I(Y; S) requires a partition of space, it is a scale-indexed statistic rather than an intrinsic property of a dataset: it generally increases as the partition is refined, approaching H(Y) when each unit holds a single observation, so values from different resolutions are not directly comparable.

The SIE metric

For a model with predictions Ŷ and residuals ε = Y − Ŷ, the residual spatial information I(ε; S) measures the spatial structure left unexplained. SIE is defined as

E = 1 indicates that the residuals contain no remaining spatial information; E = 0 indicates no reduction relative to the response. The upper bound holds because mutual information is non-negative. Values below zero, which arise when the residuals carry more spatial information than the response, are set to zero and taken to indicate model misspecification. Because mutual information is not additive, E measures a relative reduction in the location dependence of the analysed variable rather than a partition of a fixed quantity of information between model and residuals.^[1]

Discretization and estimation

Mutual information is estimated from discretized data. Y and ε are each divided into n_b equal-frequency bins at their empirical quantiles, which keeps the entropy estimates robust to skewed distributions. The two coordinates are discretized jointly by laying a regular grid over the spatial extent of the data and assigning each observation the label of its cell, so that S encodes position in both dimensions. Entropy and mutual information are then computed from the empirical distributions, in nats:

which is algebraically equivalent to the entropy-based definition. Under equal-frequency binning H(Y) ≈ log n_b. The plug-in estimate carries a positive bias whose leading term is (n_b − 1)(n_s − 1) / 2n, where n_s is the number of occupied spatial cells and n the number of observations.^[10][11] Because the same bias enters both mutual informations and I(ε; S) < I(Y; S), it biases E downwards, making the metric conservative; at a fixed resolution the bias is common to all models and does not alter their ranking.

Residuals from block cross-validation

Residuals of a model fitted to the full dataset would overstate SIE, because spatial autocorrelation lets training observations inform predictions at nearby locations. SIE therefore uses k-fold spatial block cross-validation: the domain is divided into contiguous blocks that are randomly assigned to folds, each fold is predicted by a model trained on the others, and the out-of-fold predictions Ŷ_OOF are concatenated over all folds. The residuals ε_block = Y − Ŷ_OOF give a spatially honest estimate, and accuracy metrics computed from the same predictions provide a directly comparable baseline.^[1]

Multi-scale SIE

Because spatial dependence operates at several scales, scale-specific SIE E_r = 1 − I_r(ε; S) / I_r(Y; S) is computed at a set of grid resolutions r₁, …, r_K and aggregated as

This discrete form follows from a continuous definition as a weighted integral of E_r over a bounded range of resolutions, from the resolution of the observations to the extent of the study area. Scales at which the response carries more spatial information receive larger weights. The softmax may be written with a temperature τ, which the paper fixes at 1 so that the metric has no tunable parameter. Because the weights depend on Y alone, they are the same for every model; selecting the resolution that maximizes E_r would instead introduce an upward selection bias. A single resolution is the special case K = 1, and the scale-specific values remain available as a diagnostic profile.^[1]

Properties

• Beyond variance and autocorrelation. Mutual information detects systematic differences between the distribution within spatial cells and the overall distribution, including differences in central tendency, dispersion and shape such as skewness or tails. Residuals with a constant conditional mean but spatially varying variance leave residual autocorrelation near zero, while I(ε; S) remains positive.^[1]
• Finite-sample ceiling. Even for spatially random residuals the plug-in estimate of I(ε; S) is positive, so E stays below 1 under full learning; the ceiling depends on the number of bins, the grid and the sample size.
• Comparability. E values should be compared across models only under identical discretization settings and sample sizes, with the leading bias term kept small relative to I(Y; S).
• Joint reading with accuracy. Spatially unstructured noise in the predictions can weaken the dependence of residuals on location while increasing error. The paper therefore recommends interpreting E together with accuracy computed under the same validation: higher E with equal or better accuracy indicates stronger spatial learning, whereas higher E with lower accuracy reflects noise effects.^[1]
• Weight profile. The shape of the softmax weights is informative: a strongly peaked profile indicates spatial information concentrated at one grain, a near-uniform profile information spread over several scales.

Worked example

A 4 × 4 grid illustrates the calculation. The response is a left-to-right gradient plus a perturbation unrelated to location, Y(i, j) = j + o(i, j) with o ∈ {0, 0.2, 0.4, 0.6}, so that the two equal-frequency bins of Y coincide with the left and right halves of the grid. With n_b = 2 bins and a 2 × 2 grid, every cell is pure in the bin of Y, giving I(Y; S) = ln 2.

Evaluation

Simulation study

The simulation generated a spatial signal f(S) from five spatial components on the unit square, with observations Y = f(S) + ε under Gaussian noise (Figure 1), and varied only the prediction to represent increasing spatial learning, with 20 bins and an 8 × 8 grid.^[1]

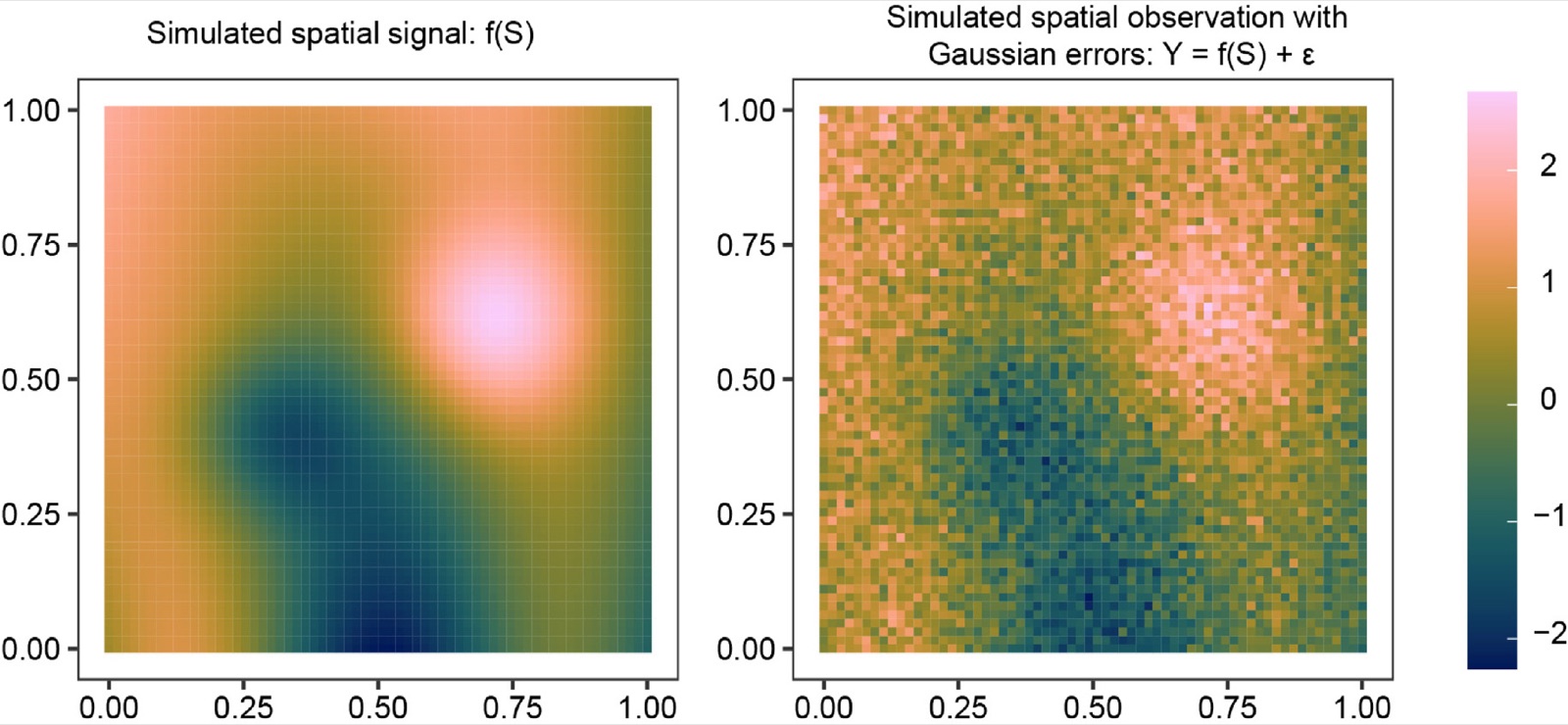

Figure 1. The simulated spatial signal f(S), combining five spatial components, and the observations Y = f(S) + ε with Gaussian errors.

E was zero both without spatial structure and when structure was present but unmodelled, and increased monotonically with the learned proportion, though not proportionally, since mutual information is a nonlinear functional of the joint distribution (Figure 2). The value of 0.802 under full learning reflects the finite-sample noise floor of the estimator: with purely random residuals the estimate of I(ε; S) was still 0.154 nats, close to the 0.153 of the no-structure scenario. Residual maps showed spatial structure decreasing progressively as E rose.

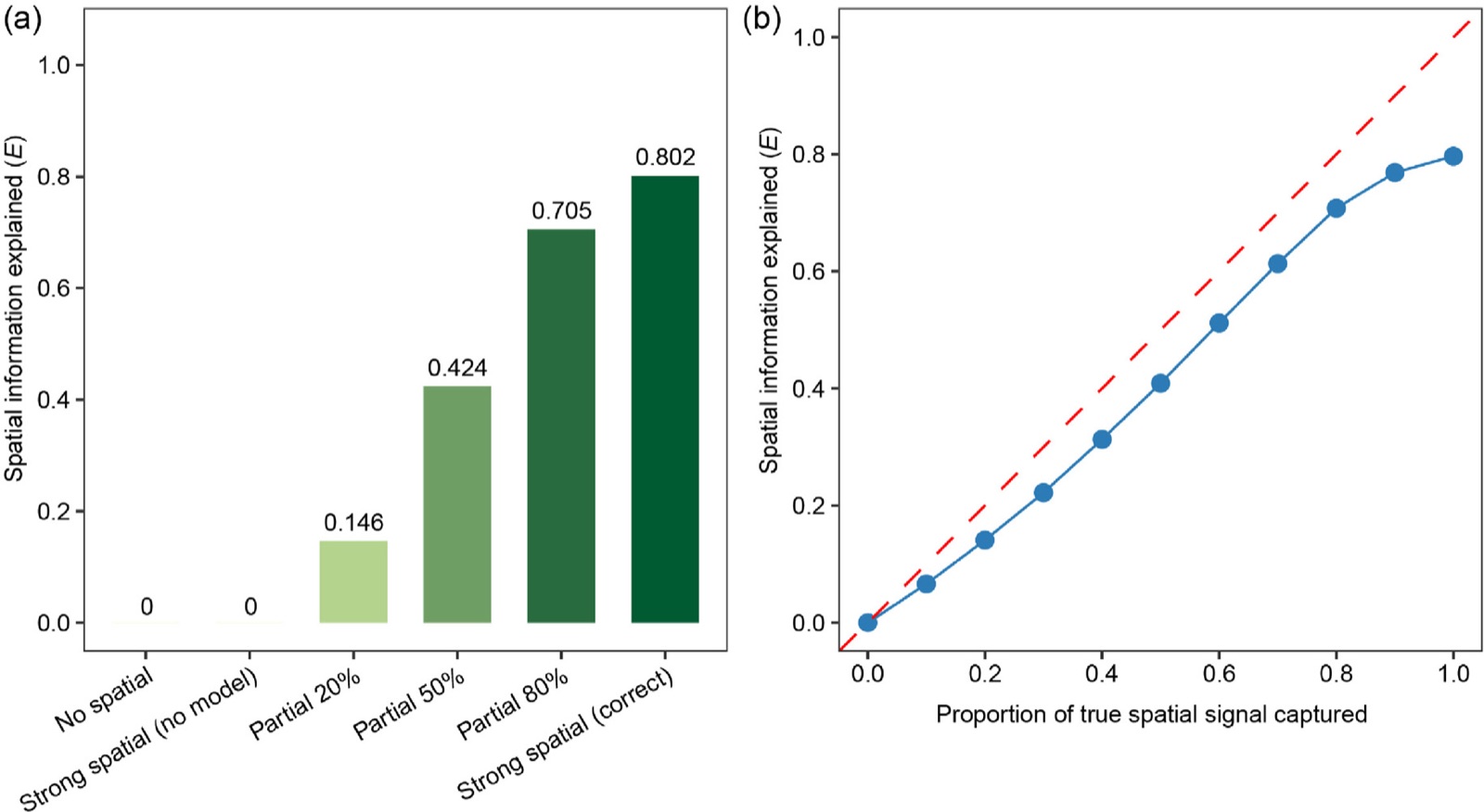

Figure 2. SIE across the six simulation scenarios (a) and as a function of the learned proportion of the spatial signal (b).

Robustness was examined in 14 configurations across four families, with 20 replicates each: autocorrelation strength (Gaussian random fields with exponential covariance and ranges 0.05–0.40), sample size (400, 1,024 and 4,096), sampling pattern (regular, uniform random, clustered) and noise type (Gaussian, heteroscedastic, Student t, lognormal). E increased monotonically with learning in every configuration (Figure 3). Smaller samples compressed the response — full-learning E fell from 0.79 to 0.38 and 0.15 as the leading bias term rose from 0.15 to 0.58 and 1.50 nats — and heteroscedastic noise lowered the ceiling to 0.69, which the paper attributes to genuine residual spatial structure, since location-dependent dispersion cannot be removed by a conditional-mean prediction.^[1]

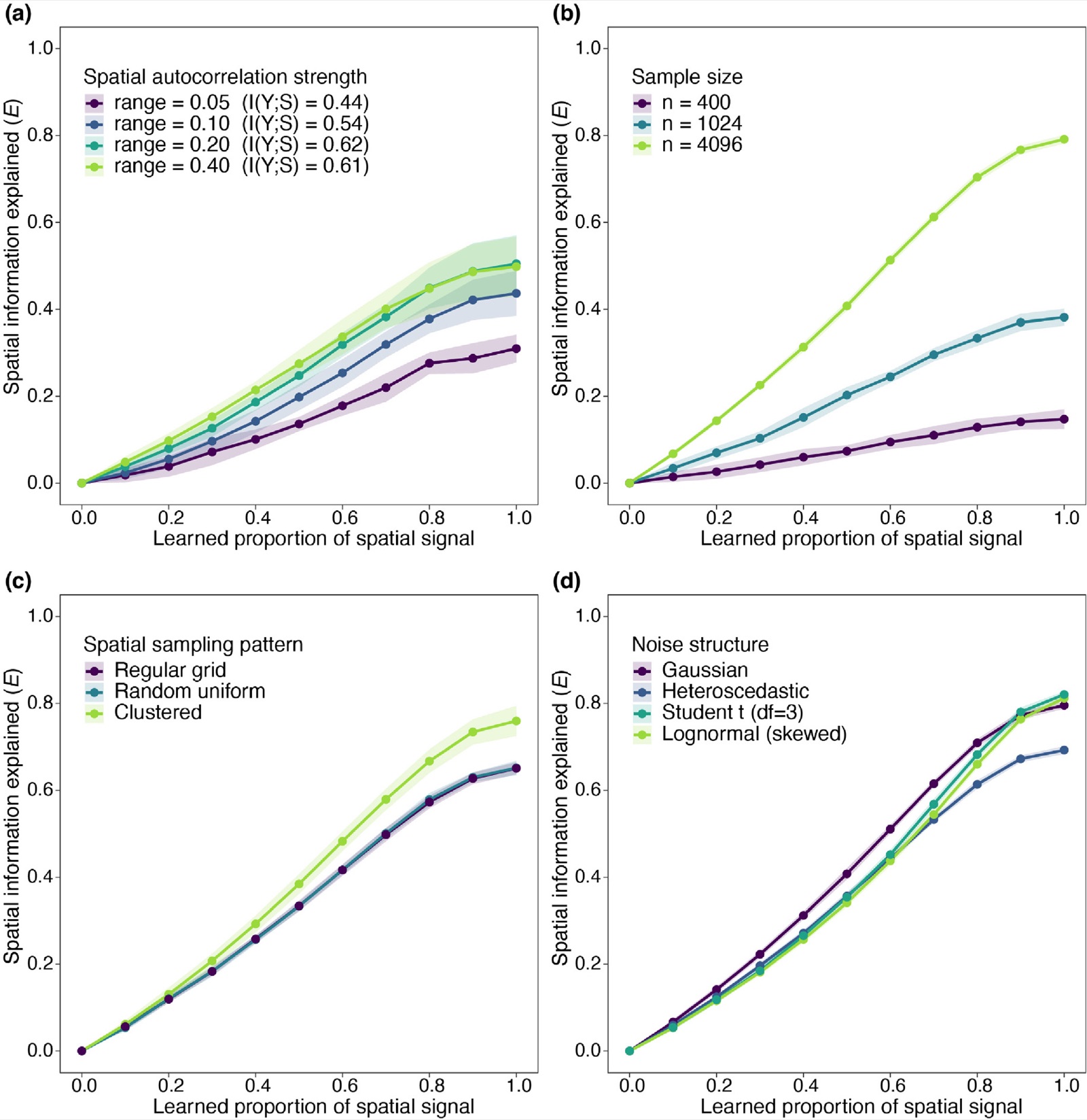

Figure 3. Robustness of E across four data families: (a) spatial autocorrelation strength, (b) sample size, (c) sampling pattern and (d) noise structure. Lines show the mean over 20 replicates, ribbons ±1 standard deviation.

Case study: C4 grass area in Australia

The application evaluated ten machine learning models predicting the percentage of land covered by C4 natural grasses across Australia in 2019, on 2,480 cells of 0.5°, from three predictors: the AC4/AC3 photosynthetic advantage ratio, mean annual temperature and mean annual precipitation (Figure 4).^[12] The models spanned four classes — tree ensembles (random forest, XGBoost, LightGBM, gradient boosting), smooth nonlinear models (support vector regression, a neural network averaged over five initializations), an instance-based model (k-nearest neighbours) and linear and spline models (elastic net, lasso, MARS) — with fixed regularized hyperparameters. SIE used five-fold block cross-validation on a 10 × 10 block grid with blocks of about 360 km, 20 bins, and four grids of 900, 600, 450 and 360 km cells.

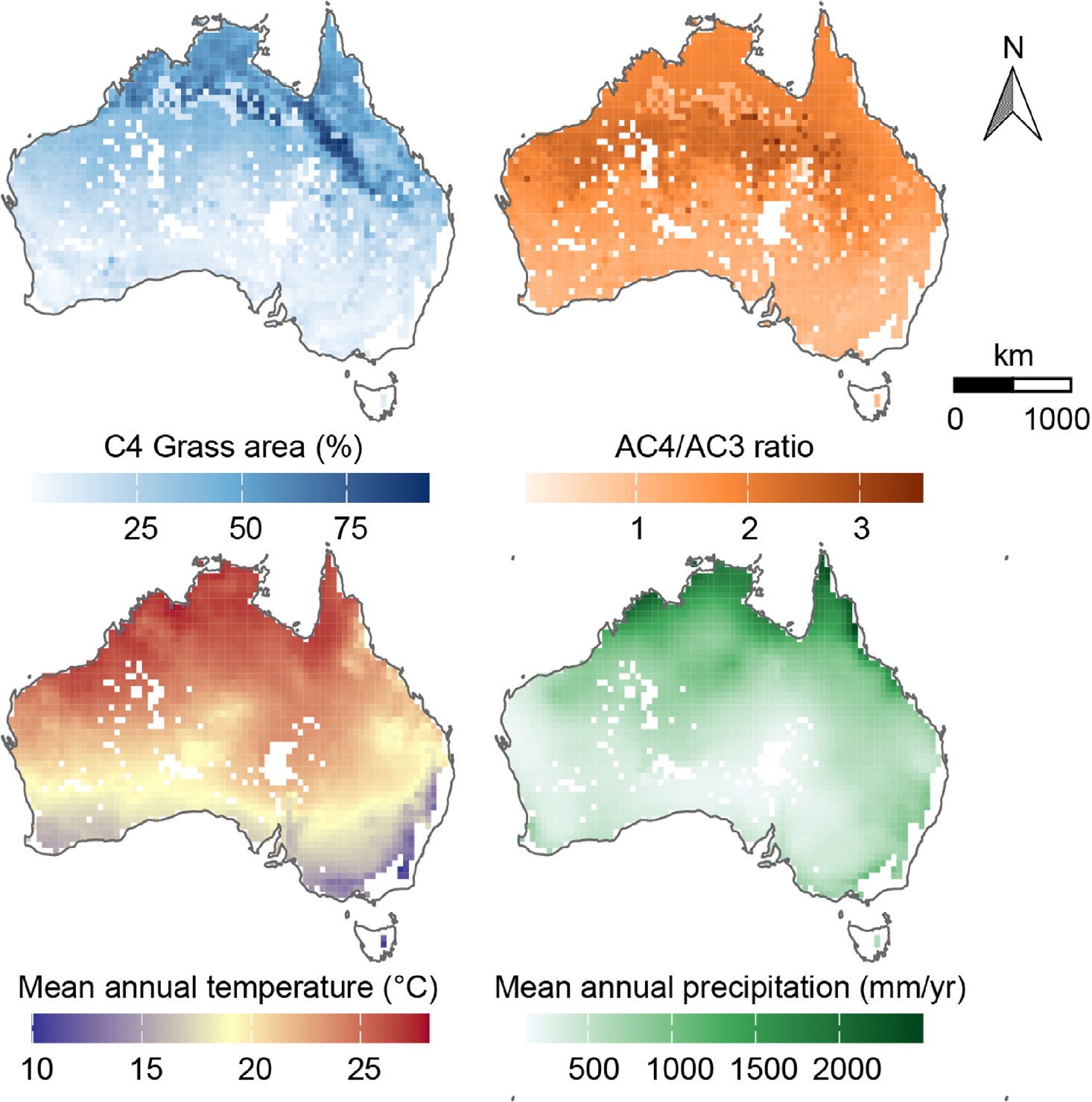

Figure 4. C4 natural grass area percentage (Y) and the three predictors across Australia at 0.5°: AC4/AC3 photosynthetic advantage ratio, mean annual temperature and mean annual precipitation. Data for 2019 from Luo et al. (2024).

The response carried 1.071 nats of spatial information at the 360 km grid, so that location accounted for about 36% of its entropy at that grain. All ten models left positive residual spatial information, from 0.646 nats (XGBoost) to 0.840 (lasso). The softmax weights were nearly uniform (0.199 at 900 km to 0.298 at 360 km), indicating spatial information spread across the examined scales; replacing them by linear or uniform weights changed E by less than 0.013 and left the ranking unchanged. Scale-specific E_r declined from the coarsest to the finest grid for every model, with a consistent model ordering (Figure 5).^[1]

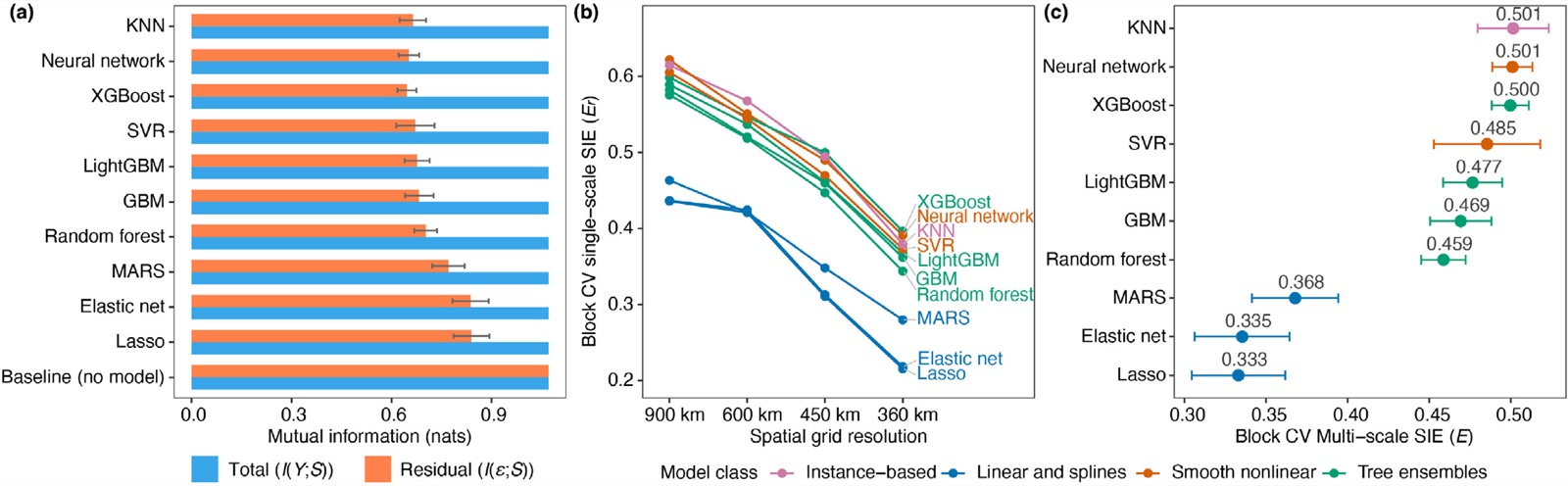

Figure 5. Multi-scale SIE under block cross-validation: (a) total and residual spatial information for the ten models and the no-model baseline; (b) scale-specific E_r profiles across the four grids; (c) multi-scale E with one standard error across folds.

KNN, the neural network and XGBoost formed a statistically indistinguishable leading group with E of about 0.50, and the ranking was robust to five alternative random assignments of blocks to folds. Support vector regression had the lowest RMSE (8.26) and highest R² (0.789), and random forest the second-lowest RMSE but the seventh-highest E, which the paper relates to the smoothing of its averaged response surface. Across the ten models the Spearman rank correlation of E was −0.38 with RMSE and 0.53 with R², and the paper concludes that prediction accuracy and explained spatial information are distinct, complementary dimensions of model quality. The neural network and support vector regression gave the strongest combination of both (Figure 6).^[1] Residual maps of the higher-SIE models showed weaker large-scale gradients in central and southern Australia, while all models retained residual clustering in the tropical north and semi-arid interior.

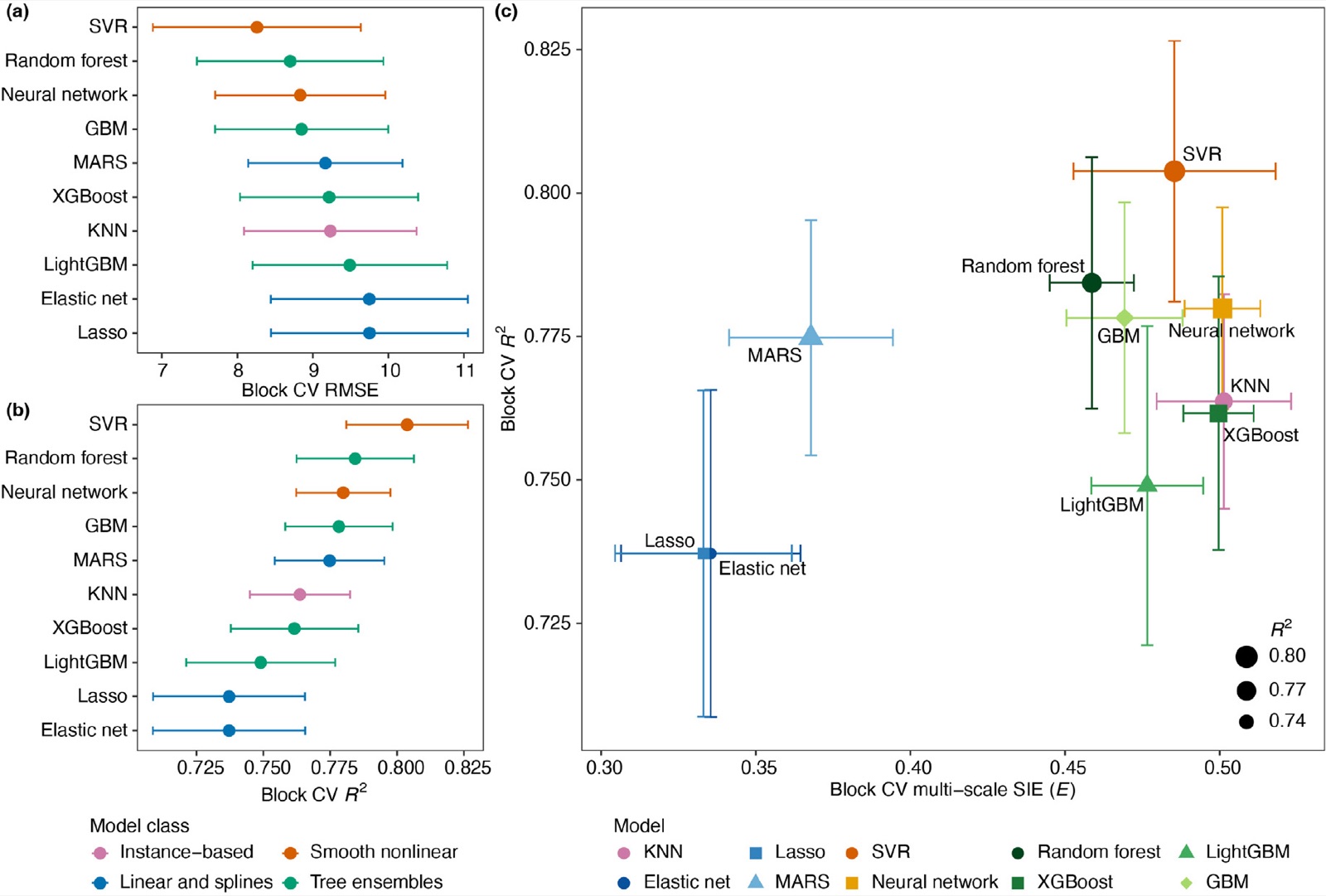

Figure 6. Model performance under block cross-validation: (a) RMSE and (b) R² as fold means; (c) R² against multi-scale E. Error bars denote one standard error across the five folds.

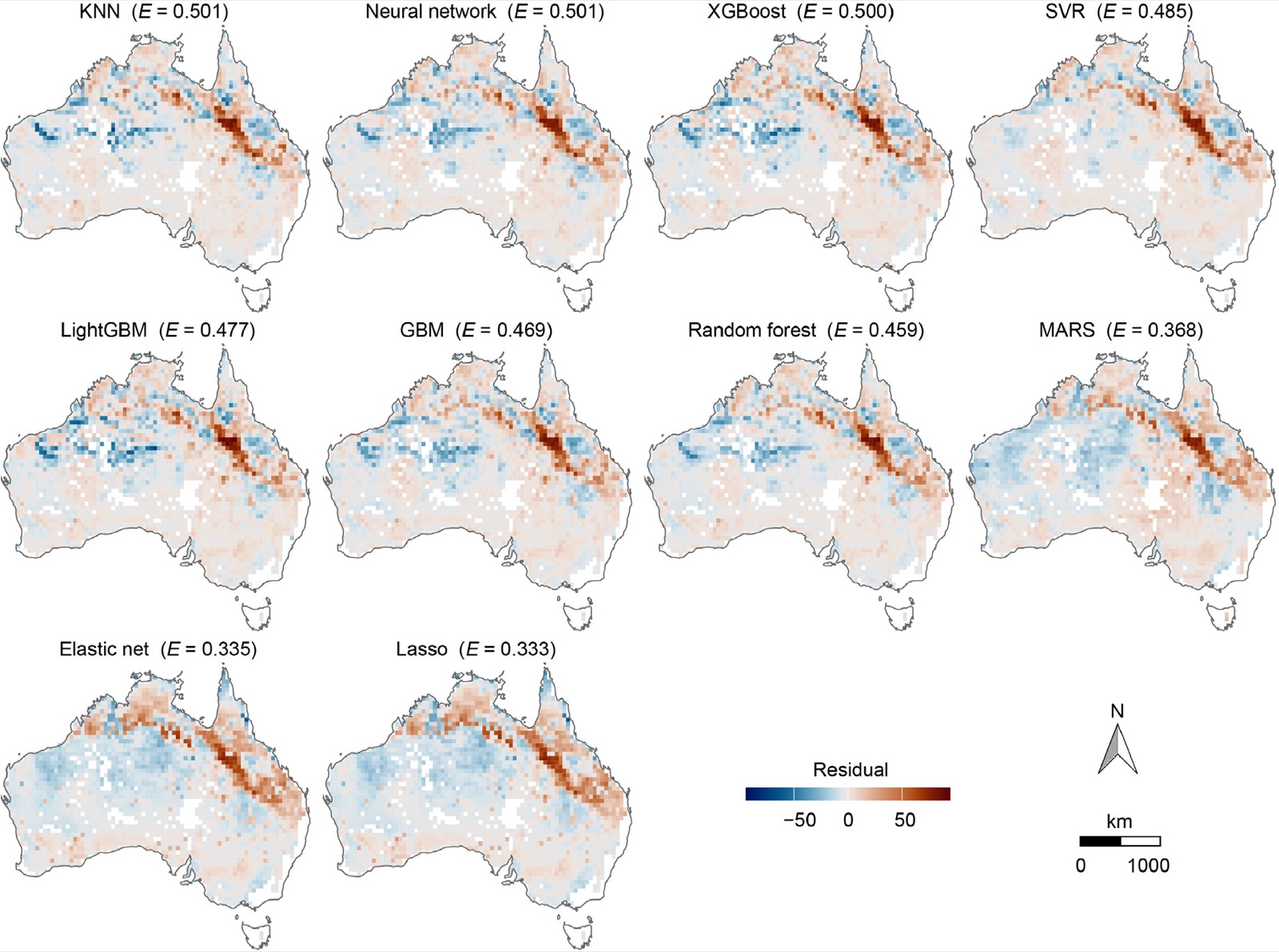

Figure 7. Out-of-fold residual maps of the ten models under block cross-validation, ordered by E from highest to lowest.

Sensitivity to discretization

Recomputing E from the same block cross-validation residuals for 42 combinations of bin count (5 to 30) and grid resolution (900 to 180 km) showed that discretization affects the magnitude of E but hardly the ranking of models (Figure 8). Mean single-scale E_r fell from 0.552 at 900 km to 0.181 at 180 km as the bias term rose from 0.05 to 0.95 nats while I(Y; S) rose only from 0.67 to 1.58. The Spearman correlation between each setting's ranking and the reference ranking was at least 0.879 (median 0.927); the top rank stayed within the leading group in 40 of the 42 settings, and the regularized linear models ranked lowest in all of them. The paper accordingly recommends choosing settings so that the leading bias term is small relative to I(Y; S) — at most about 0.25 of it in the case study.^[1]

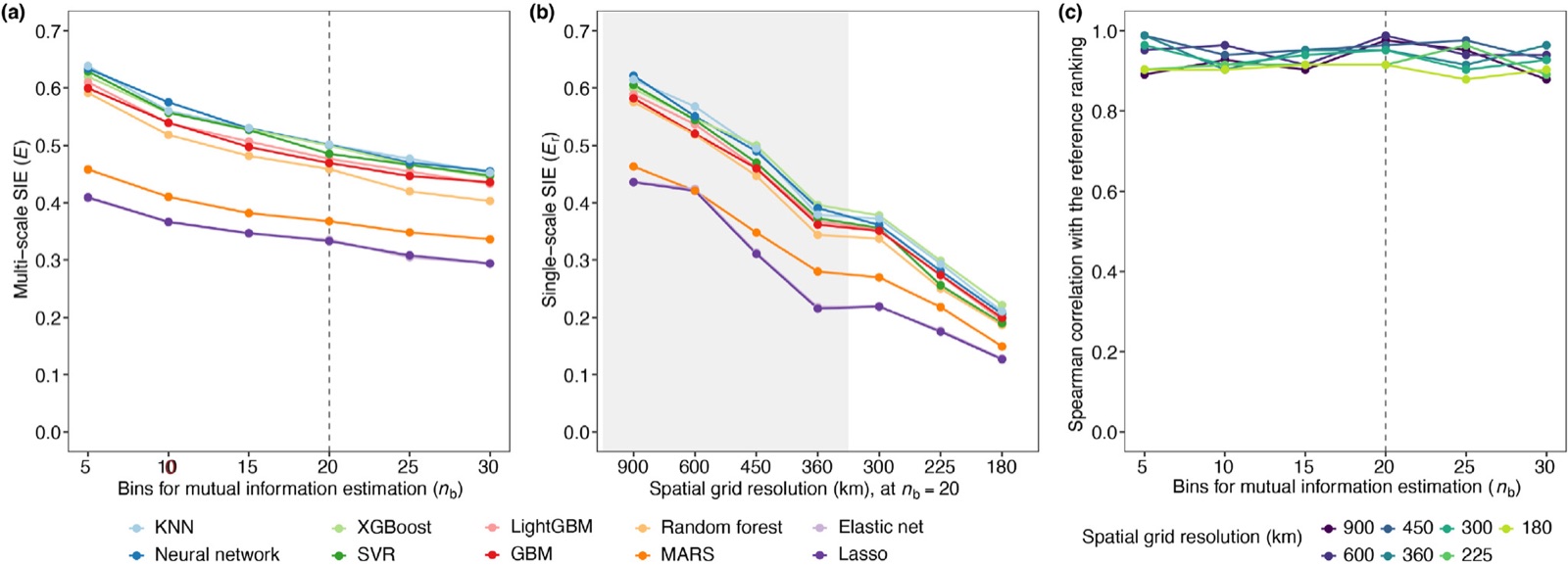

Figure 8. Sensitivity to discretization from fixed block cross-validation residuals: (a) multi-scale E across bin counts; (b) single-scale E_r across grid resolutions, with the four aggregated resolutions shaded; (c) rank stability against the reference ranking.

Block versus random cross-validation

Under random cross-validation, RMSE was lower (mean 8.15 against 9.12) and R² higher (0.815 against 0.734) than under block cross-validation, and E was higher for all ten models (mean 0.489 against 0.443). The overstatement of E ranged from 2.1% for the regularized linear models to 17.0% for gradient boosting, with a mean of 9.9%, and was largest for high-capacity models able to exploit spatial proximity (Figure 9). The paper attributes the inflation of both accuracy and SIE to the same mechanism: under random partitioning, nearby training observations reproduce local spatial structure that the predictors alone cannot supply, so block cross-validation gives the more conservative estimate of spatial learning when the aim is generalization to unobserved regions.^[1]

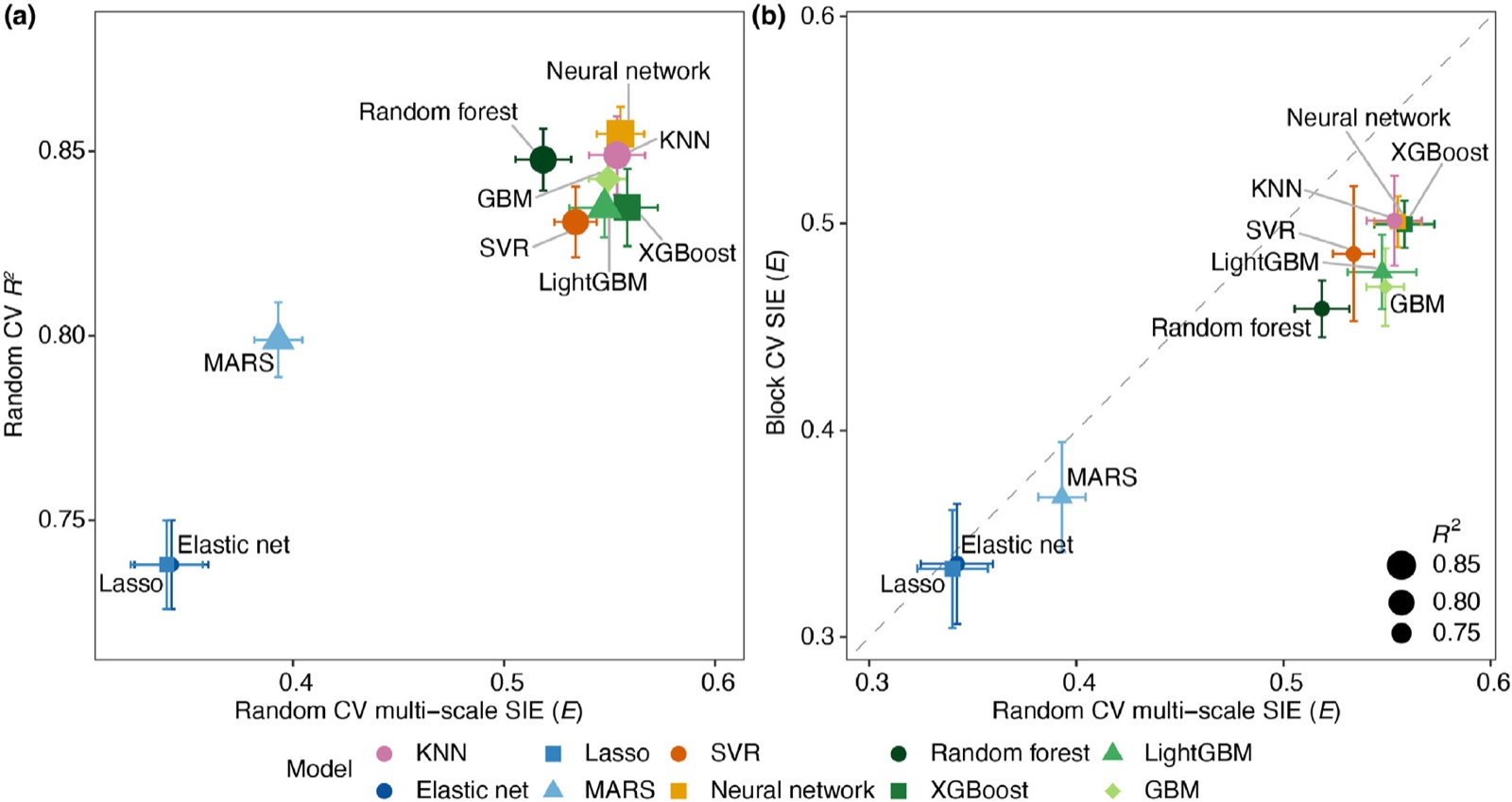

Figure 9. SIE across cross-validation strategies: (a) random cross-validation R² against multi-scale E; (b) block against random cross-validation E, with the diagonal marking equality.

Relationship to other methods

The paper positions SIE among evaluation methods for spatial prediction by evaluation objective and spatial analytical capacity (Table 4). Accuracy metrics such as RMSE and R² quantify error magnitude. SHAP and GeoShapley attribute predictions to predictors and to location without quantifying explained spatial information.^[14] Among residual-based methods from the same research group, the generalized spatial error evaluates local prediction errors,^[7] the degree of spatial interpretability (DSI) quantifies the spatially stratified variance a model explains,^[5] and the degree of geocomplexity (DG) the loss of local spatial pattern.^[6] SIE differs in measuring the relative reduction of spatial information through mutual information, which captures general statistical dependence on location, and in integrating it across scales from spatially separated validation predictions.

Moran's I of residuals tests whether neighbouring residuals are more similar than expected under spatial randomness, and Moran eigenvector spatial filtering has been used to reduce such autocorrelation in machine learning models;^[17] it detects unexplained dependence but does not quantify what share of the response's spatial information remains. The area of applicability identifies the predictor space within which predictions can be considered reliable,^[15] and is complementary. Spatial+ cross-validation is complementary in the design dimension: SIE can be computed from the residuals of any spatially separated validation design, including spatial+ partitions.^[16] A summary of the related methods from the research group is maintained on the Methods page.

The paper names three directions for further work: continuous estimators of mutual information, such as kernel and k-nearest-neighbour estimators, and continuous-scale SIE over the bounded resolution range; the integration of SIE into automated model selection and spatial deep learning; and evaluation with responses of different spatial dependence, categorical responses such as land cover, and other geographic domains.^[1]

Software

SIE is implemented in a single base-R file released with the paper. The function takes observed values, out-of-fold predictions and coordinates, so it can be applied to the output of any model and any spatially separated validation design.

Minimal example

source("sie.R")                      # from github.com/yongzesong/SIE, base R only
c4 <- read.csv("c4-data.csv")         # 2,480 cells: lon, lat, response, 3 predictors

# y_hat: out-of-fold predictions of a model from spatial block cross-validation
# (example.R builds them for the ten models of the paper)
E <- sie(y = c4$C4_grass_area_pct, y_hat = y_hat,
         coords = c4[, c("lon", "lat")], n_bins = 20, scales = c(4, 6, 8, 10))
E$E          # multi-scale SIE, e.g. 0.501 for k-nearest neighbours
E$profile    # per grid: occupied cells, I(Y;S), I(e;S), E_r, bias term, weight

Call sequence from the repository README; scales gives the grid sizes g of g × g cells over the bounding box of the coordinates.
