Reproducing the Second Dimension of Spatial Association (SDA)

1 Method Overview & Reproduction Scope

1.1 Core Idea

Almost every model of spatial association reads its explanatory variables at the sample locations: one soil sample, one elevation value, one NDVI value, taken at that exact point. Song (2022) names this the first dimension of spatial association (FDA) and observes what it throws away — everything the environment is doing in the neighbourhood around the sample. A grid of 68,757 cells sits under 614 samples in the demo below, and the first dimension uses 614 of those cells.

The second dimension of spatial association (SDA) uses the rest. Around each sample it draws a circle of radius b, takes every grid cell inside, and summarises that local distribution at a quantile τ. Each pair (b, τ) becomes one explanatory variable: the τ-quantile of this surface within b km of the sample. A single surface therefore yields a whole family of variables describing the neighbourhood at several ranges and several parts of its distribution, and the data decide which of them matter.

• Research problem: information at locations outside the samples is missing from models built on sample values, even when a dense grid of that information is available.
• One-line contribution: SDA turns the geographical environment around each sample into explanatory variables indexed by a searching range b and a quantile τ, then selects among them, so spatial association is explored in a second dimension rather than only at points.
• Why it matters: on the same samples, the same split and the same models, the second dimension predicts trace-element concentration substantially better than the first — in the demo below, R² rises from 0.242 to 0.300 for a linear model and 0.275 to 0.333 for a random forest.

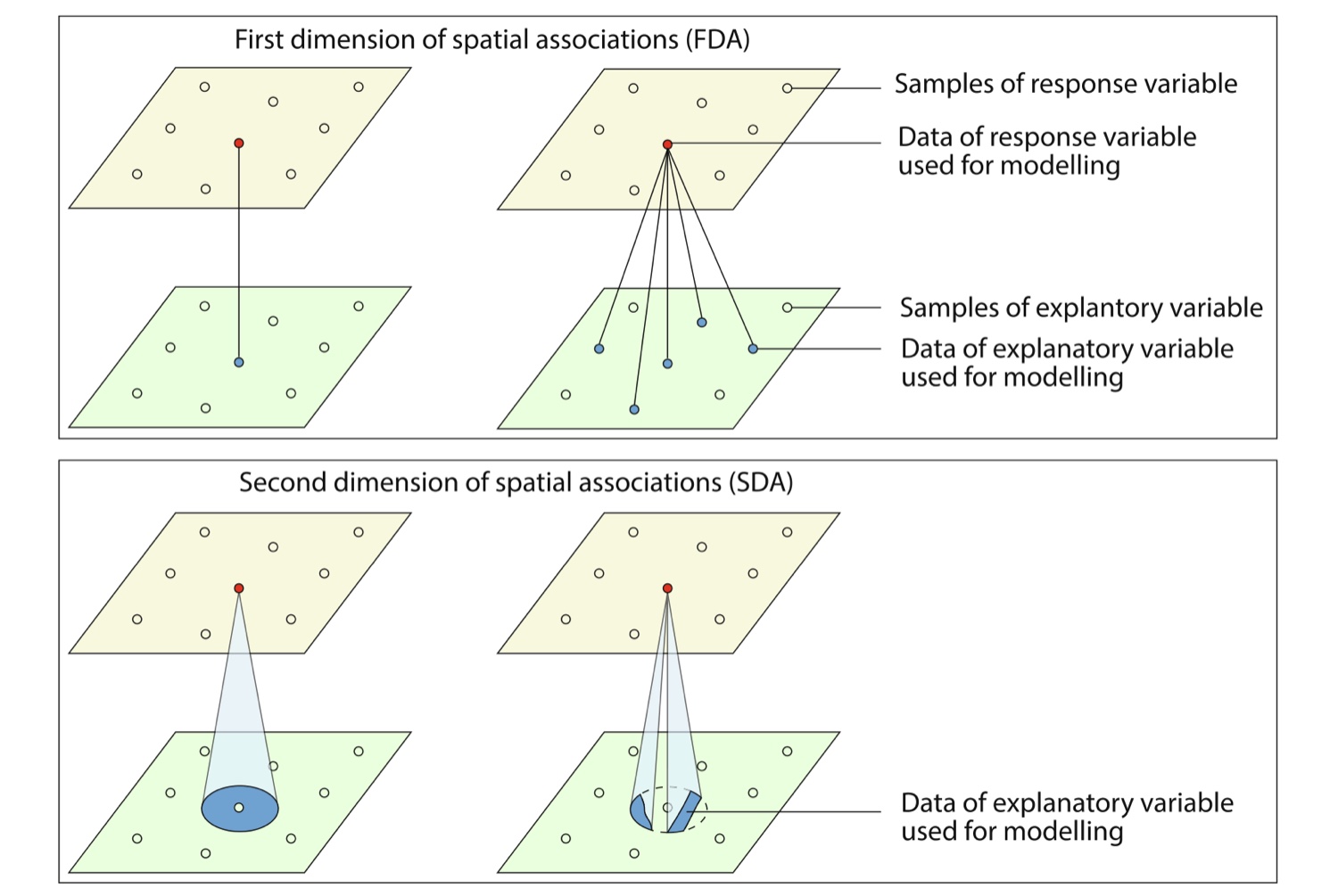

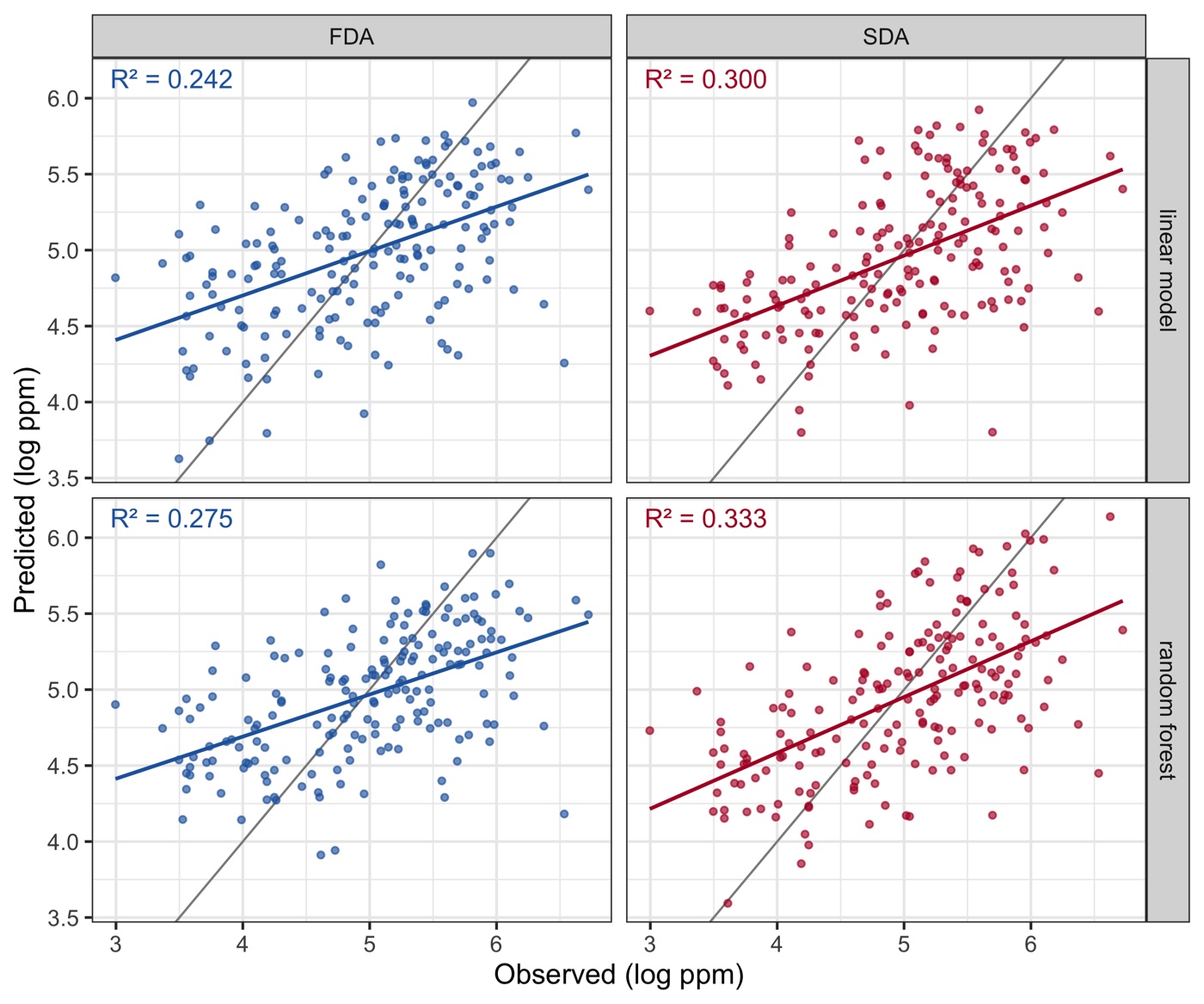

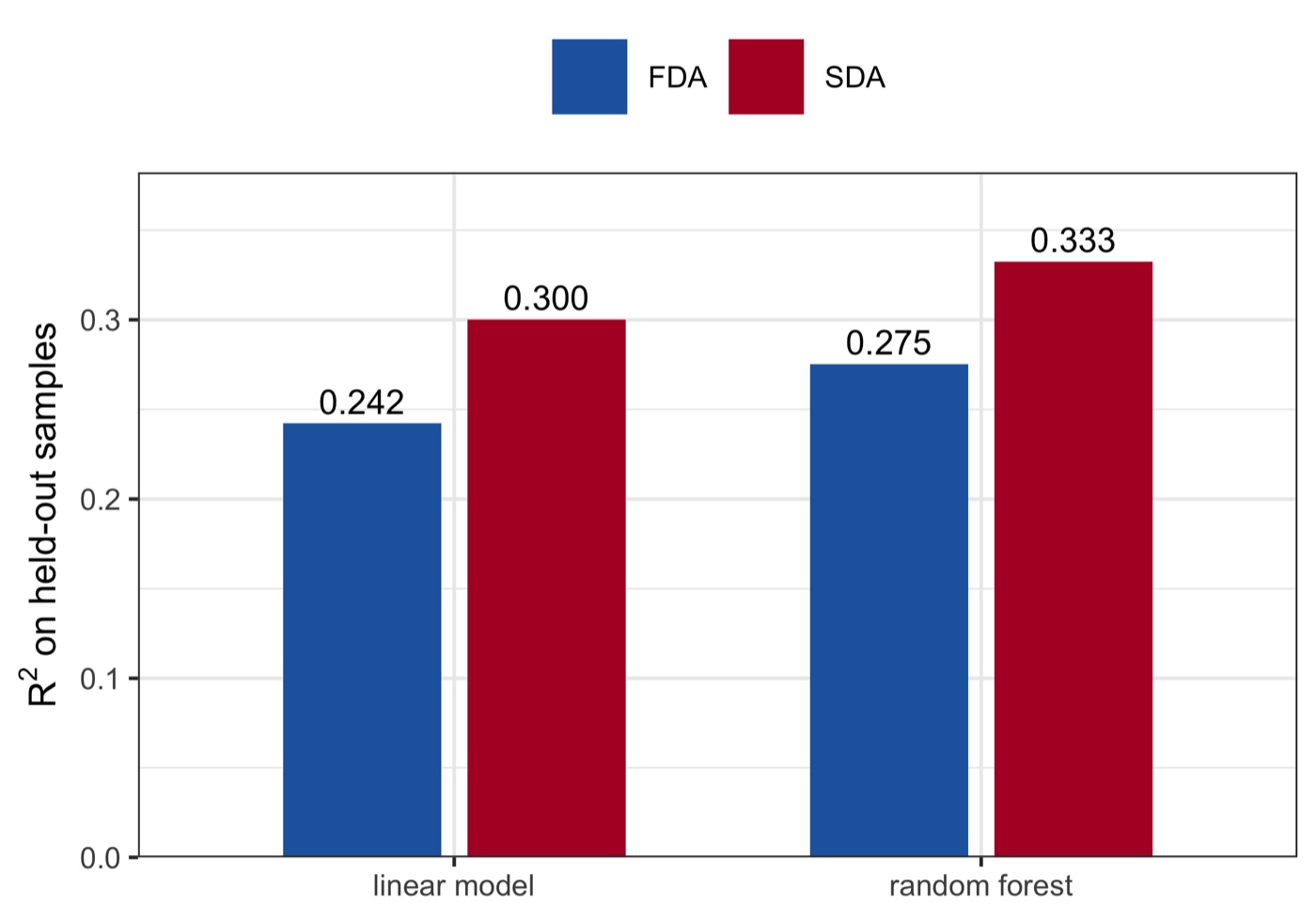

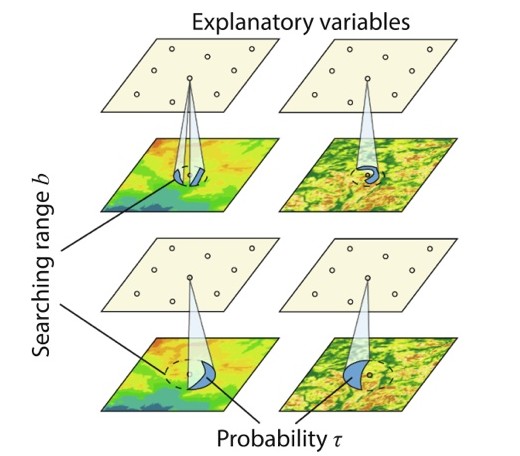

Published reference · SDA SDA paper Fig. 1 — the whole idea in one picture. Above: the first dimension links a response sample to explanatory values at the same points. Below: the second dimension opens a cone from the sample down onto the explanatory surface and summarises everything inside it, so information from locations that were never sampled enters the model. Song (2022), Int J Appl Earth Obs Geoinf 111:102834 (CC BY-NC-ND).

1.2 Method Logic

SDA is the root of a small family of methods. The idea of looking outside the samples was introduced for spatial prediction, then extended to explanation, to outliers, and to heterogeneity:

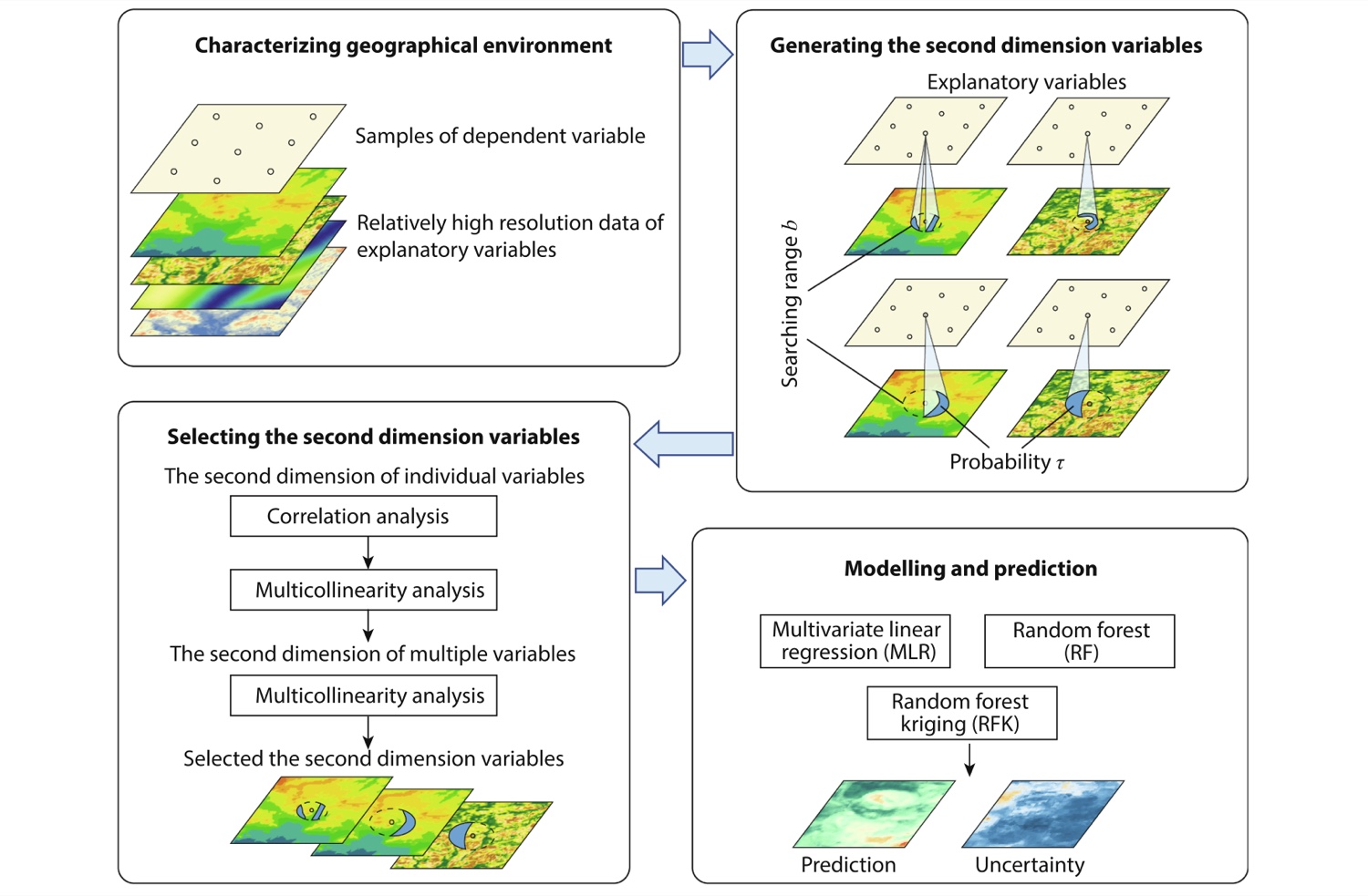

Published reference · SDA SDA paper Fig. 2 — the second dimension model (SDM), and the plan of §3 of this page: characterise the environment on a fine grid, generate variables over the (searching range b, probability τ) grid, select them in two stages by correlation and multicollinearity, then model and predict. Click to enlarge.

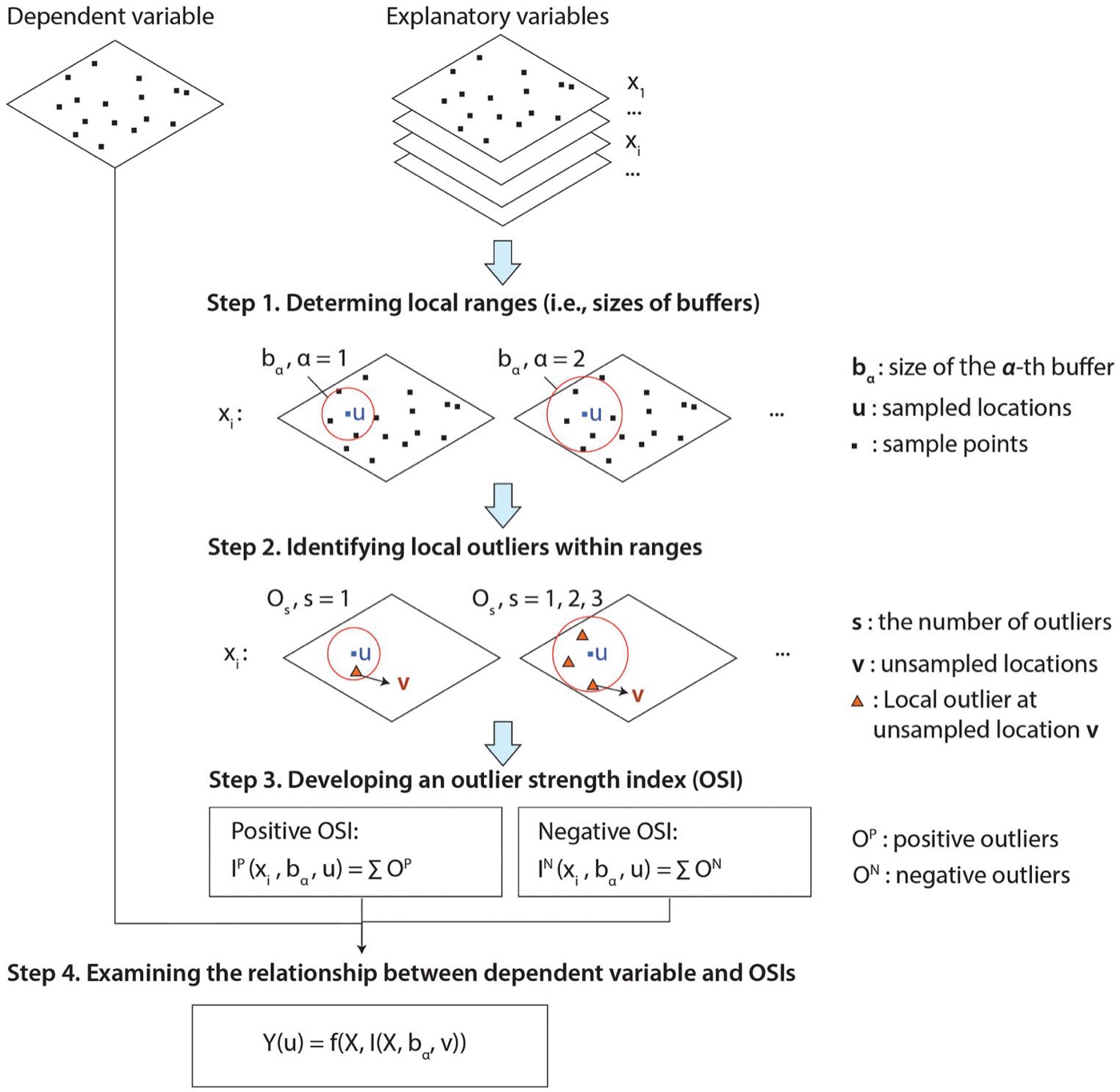

Published reference · SDO SDO paper Fig. 1 — the same second-dimension geometry, but summarising the outliers in each neighbourhood instead of its quantiles (Ren, Song & Yu 2025).

Key concepts and equations

• A second-dimension variable. For sample i, surface X, searching range b and quantile τ:
  X^b,τ_i = Quantile_τ { X(s) : d(s, i) < b }
  the τ-quantile of the surface over every grid cell s within b of the sample. τ = 0 is the local minimum, τ = 1 the local maximum, τ = 0.5 the local median. With n_b ranges and n_τ quantiles a surface produces n_b × n_τ variables — 55 in the demo.
• The first dimension is the limiting case. As b → 0 the circle contains only the sample's own cell and every quantile collapses to the point value, so FDA is SDA at zero range. The comparison in §3.4 is therefore between a model and its own restriction, not between two unrelated models.
• Selection. Candidates are ranked by |correlation with the response| and walked down that order, dropping any variable that pushes the variance inflation factor above a threshold:
  VIF_j = 1 / (1 − R²_j), R²_j = 1 − SSE_j / SST_j
  This matters more here than in an ordinary regression: neighbouring buffers and neighbouring quantiles describe almost the same neighbourhood, so the 440 candidates are collinear by construction.

1.3 Reproduction Scope

Everything tagged Demo run regenerates from this folder; everything tagged Published reference is a static image from the source articles. The demo runs end to end with R 4.6.0, and it reproduces the published result twice over: the generated variables are identical to the published values, and selecting from all 440 candidates returns exactly the ten variables of the paper's Fig. 5(a).

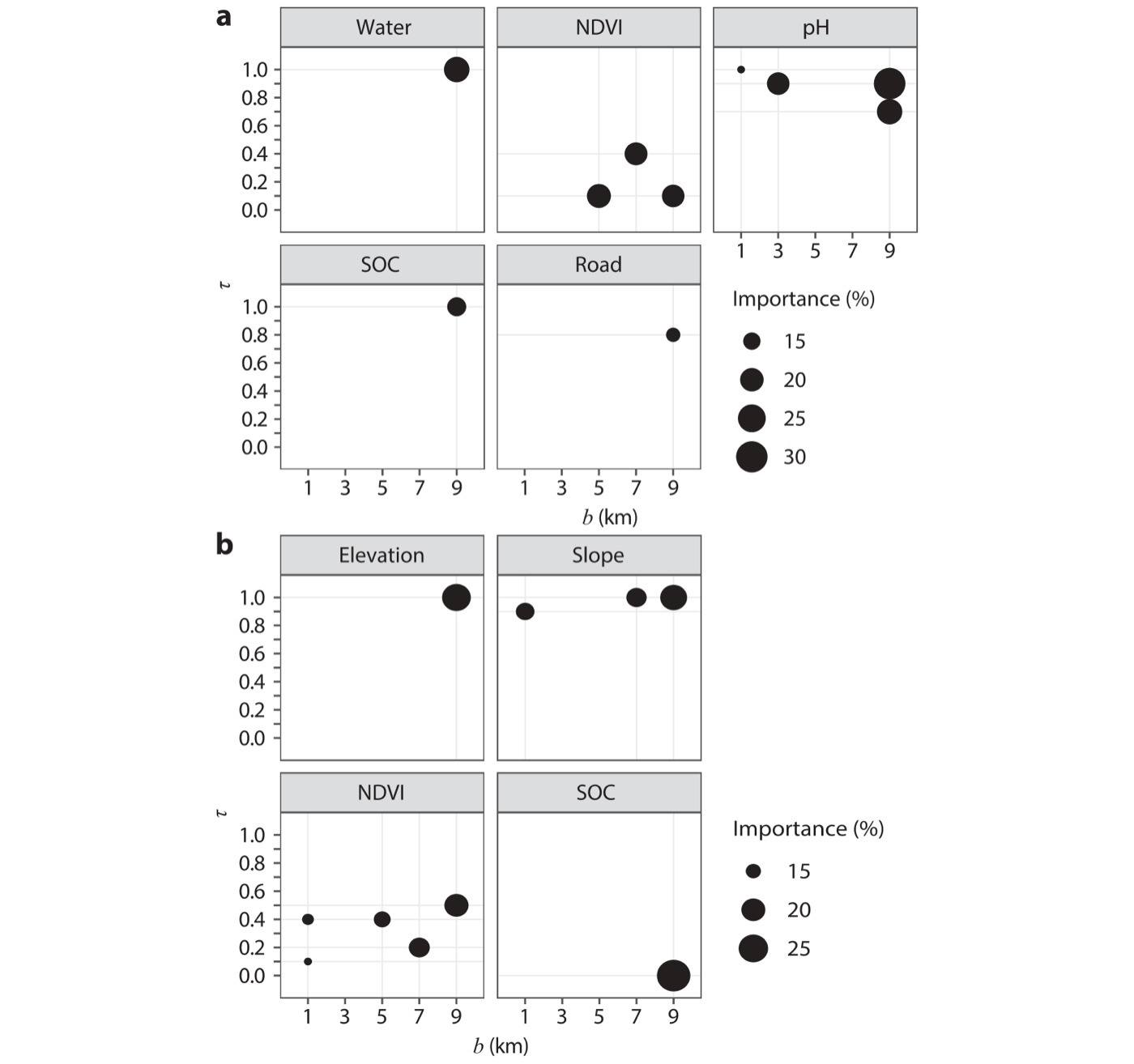

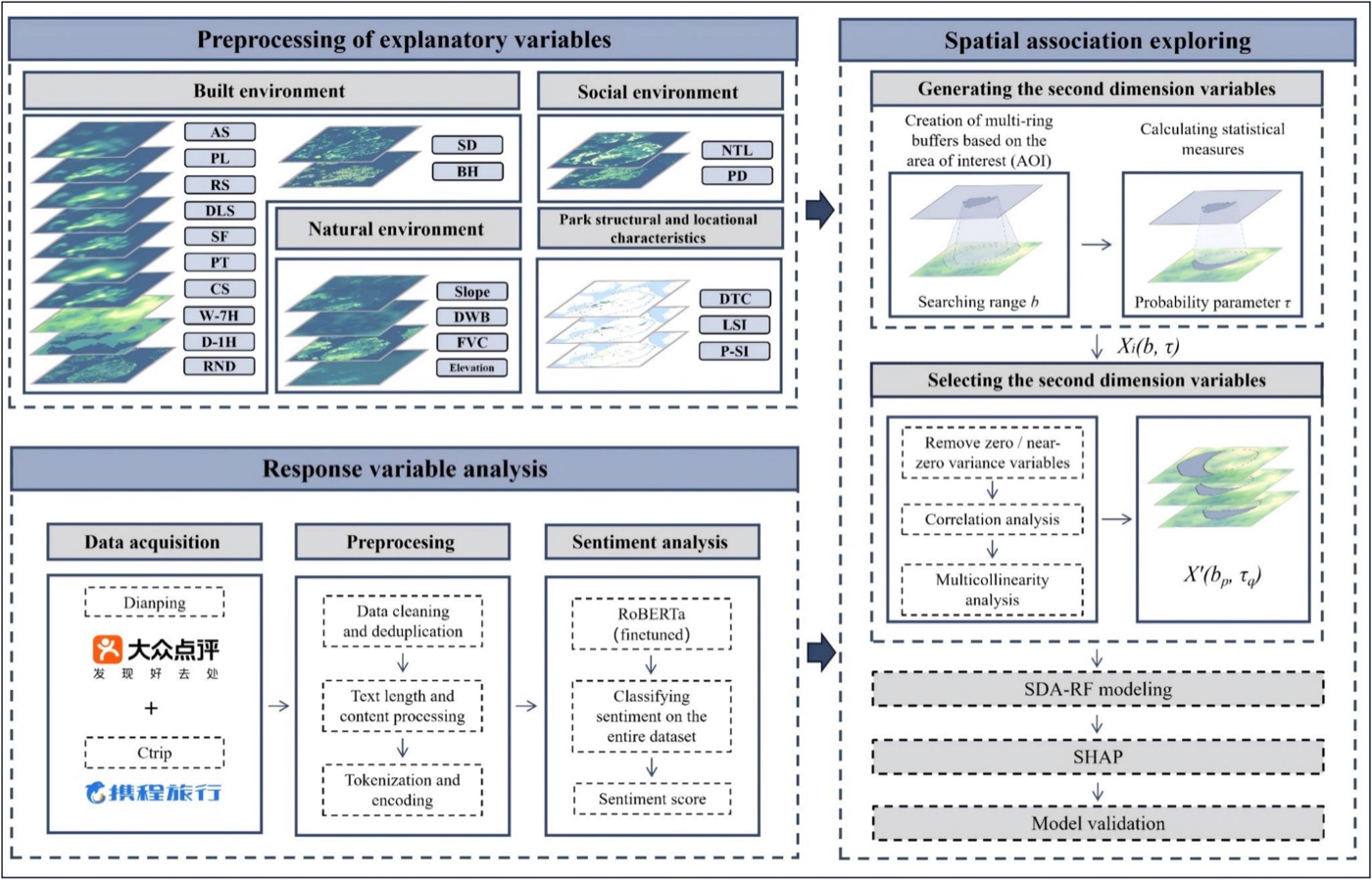

Published applications of the second dimension

How to use this page

• To reproduce the demo: the folder holds the method, the pipeline, the data and the tests. Run Rscript run-all.R test, then Rscript run-all.R.
• To use the method on your own problem: §2.2 prints the whole implementation, so you can paste it into your own script; §2.4 gives the data contract and §4.1 the porting steps.
• To write the paper: §4.2 maps every result file to a manuscript element.

2 Setup, Code & Data

2.1 Environment & Dependencies

The method needs nothing. R/02-sda-core.R is written in base R, so source() it and the whole of SDA is available. The pipeline around it uses three optional packages, and each step reports and continues if one is missing.

# Figures
install.packages(c("ggplot2", "ggrepel"))

# The random-forest arm of the cross validation
install.packages("randomForest")

# Optional: used for distances when present. The built-in haversine in
# 02-sda-core.R agrees with it to 1e-6 m, and tests/test-01 checks that.
install.packages("geosphere")

2.2 The Method in One File

The whole of SDA is printed here so it can be copied out and used directly; it is also R/02-sda-core.R in the download, and the two are the same file. Four pieces: generation, the variance inflation factor, selection, and outliers.

Generating second-dimension variables

The heart of the method. For each sample, distances to every grid cell; for each searching range b, the cells inside; for each quantile τ, one number. Columns come back named b5t0.7 — the 0.7 quantile within 5 km — so a variable's parameters are legible from its name for the rest of the analysis.

# -- Great-circle distance ----------------------------------------------------
# Metres between one point (lon, lat) and a matrix of points, on a sphere of
# radius r. Matches geosphere::distHaversine(..., r = 6378137).

sda_haversine <- function(p, pts, r = 6378137) {
  d2r <- pi / 180
  lon1 <- p[[1]] * d2r; lat1 <- p[[2]] * d2r
  lon2 <- pts[[1]] * d2r; lat2 <- pts[[2]] * d2r
  dlon <- lon2 - lon1; dlat <- lat2 - lat1
  a <- sin(dlat / 2)^2 + cos(lat1) * cos(lat2) * sin(dlon / 2)^2
  2 * r * asin(pmin(1, sqrt(a)))
}


# -- 1. Second-dimension variables --------------------------------------------
#' Generate second-dimension variables for one grid surface.
#'
#' For every sample point, the value of a grid variable is summarised over the
#' locations *around* the sample — the second dimension. Each buffer radius b
#' (km) and quantile probability tau gives one variable, so a surface yields
#' length(distbuf) x length(quantileprob) columns named b<b>t<tau>.
#'
#' pointlocation  data.frame/matrix of sample coordinates (lon, lat)
#' gridlocation   data.frame/matrix of grid coordinates (lon, lat)
#' gridvar        numeric vector of the grid variable, one value per grid cell
#' distbuf        buffer radii in km
#' quantileprob   quantile probabilities in [0, 1]
#' Returns the point coordinates column-bound to the generated variables.

sda_variables <- function(pointlocation, gridlocation, gridvar,
                          distbuf = seq(1, 10, 1),
                          quantileprob = seq(0, 1, 0.1),
                          verbose = FALSE) {
  samples <- as.data.frame(pointlocation)
  grids   <- as.data.frame(gridlocation)
  if (nrow(grids) != length(gridvar))
    stop("gridvar must have one value per row of gridlocation")

  nbuf <- length(distbuf); nprob <- length(quantileprob)
  out <- data.frame(matrix(NA_real_, nrow(samples), nbuf * nprob))
  names(out) <- paste0(rep(paste0("b", distbuf), each = nprob),
                       rep(paste0("t", quantileprob), times = nbuf))

  use_geosphere <- requireNamespace("geosphere", quietly = TRUE)
  maxbuf <- max(distbuf)

  for (i in seq_len(nrow(samples))) {
    zi <- if (use_geosphere) {
      geosphere::distHaversine(samples[i, ], grids, r = 6378137) / 1000
    } else {
      sda_haversine(samples[i, ], grids) / 1000
    }
    # One pass per buffer: cells inside b, then the requested quantiles.
    vals <- numeric(0)
    for (b in distbuf) {
      inb <- which(zi < b)
      q <- if (length(inb) > 0) {
        as.numeric(stats::quantile(gridvar[inb], quantileprob, na.rm = TRUE))
      } else {
        rep(NA_real_, nprob)
      }
      vals <- c(vals, q)
    }
    out[i, ] <- vals
    if (verbose && i %% 100 == 0)
      cat(sprintf("   ...%d / %d points\n", i, nrow(samples)))
  }
  cbind(pointlocation, out)
}

The variance inflation factor

Selection leans on the VIF, so it has to be right. R²_j must be measured against the total sum of squares of the observed column.

# -- 2. Variance inflation factor ---------------------------------------------
#' VIF of every column of x, computed with base-R least squares.
#' VIF_j = 1 / (1 - R^2_j) where R^2_j regresses column j on the others.

sda_vif <- function(x) {
  x <- as.data.frame(x)
  nx <- ncol(x)
  if (nx < 2) return(stats::setNames(rep(1, nx), names(x)))
  vapply(seq_len(nx), function(j) {
    y <- x[[j]]
    X <- cbind(1, as.matrix(x[, -j, drop = FALSE]))
    fit <- tryCatch(stats::lm.fit(X, y), error = function(e) NULL)
    if (is.null(fit)) return(Inf)
    r2 <- 1 - sum(fit$residuals^2) / sum((y - mean(y))^2)
    if (!is.finite(r2) || r2 >= 1) Inf else 1 / (1 - r2)
  }, numeric(1))
}

Selecting variables, and keeping the names attached to the values

Candidates are ranked by |correlation with the response|, then walked down that order, dropping any that pushes the VIF above the threshold. sda_select() does this within each surface first, so no single surface can flood the model, then again across the survivors. sda_newdata() labels a full variable set the same way, which is what makes prediction on new data line up.

# -- 3. Variable selection ----------------------------------------------------
#' Select variables from one set: order by |correlation with y|, then walk down
#' that order dropping any variable that pushes the VIF above ctr.vif.
#'
#' NOTE. The returned columns keep the names of the columns they actually hold.
#' This matters: a selection that returns correctly-ordered values under the
#' wrong names still fits, because the fitted values are self-consistent, but
#' predict() on new data matches columns *by name* and would then read the wrong
#' variable — silently, and catastrophically.

sda_select_one <- function(y, x, ctr.vif = 10) {
  x <- as.data.frame(x)
  keep <- vapply(x, function(v) stats::sd(v, na.rm = TRUE) > 0, logical(1))
  x <- x[, keep, drop = FALSE]
  if (ncol(x) == 0) stop("no variable in x has non-zero variance")

  cors <- abs(stats::cor(cbind(y, x), method = "pearson")[1, -1])
  xs <- x[, rev(order(cors)), drop = FALSE]      # strongest correlation first
  nxs <- ncol(xs)
  if (nxs == 1) return(xs)

  drop <- integer(0)
  for (i in 2:nxs) {
    k <- seq_len(i)
    if (length(drop) > 0) k <- setdiff(k, drop)
    if (length(k) < 2) next
    if (max(sda_vif(xs[, k, drop = FALSE])) > ctr.vif) drop <- c(drop, i)
  }
  kept <- setdiff(seq_len(nxs), drop)
  out <- xs[, kept, drop = FALSE]
  names(out) <- names(xs)[kept]                  # names follow the content
  out
}

#' Select across several variable sets: choose within each set first (so no one
#' surface can flood the model), prefix the survivors by set, then select again
#' across the pooled survivors.

sda_select <- function(y, xlist, ctr.vif = 10) {
  if (!is.list(xlist)) xlist <- list(xlist)
  nms <- names(xlist)
  if (is.null(nms)) nms <- paste0("v", seq_along(xlist))
  if (length(xlist) == 1) {
    out <- sda_select_one(y, xlist[[1]], ctr.vif)
    names(out) <- paste0(nms[1], "_", names(out))
    return(out)
  }
  per_set <- lapply(seq_along(xlist), function(i) {
    d <- sda_select_one(y, xlist[[i]], ctr.vif)
    names(d) <- paste0(nms[i], "_", names(d))
    d
  })
  sda_select_one(y, do.call(cbind, per_set), ctr.vif)
}

#' Name a full variable list the same way sda_select() does, so that new data
#' lines up with a fitted model column for column.

sda_newdata <- function(xlist) {
  if (!is.list(xlist)) xlist <- list(xlist)
  nms <- names(xlist)
  if (is.null(nms)) nms <- paste0("v", seq_along(xlist))
  out <- lapply(seq_along(xlist), function(i) {
    d <- as.data.frame(xlist[[i]])
    names(d) <- paste0(nms[i], "_", names(d))
    d
  })
  do.call(cbind, out)
}

Outliers

# -- 4. Outliers --------------------------------------------------------------
#' Positions of values beyond coef standard deviations from the mean (or NA).

sda_rmoutlier <- function(x, coef = 2.5) {
  m <- mean(x, na.rm = TRUE); s <- stats::sd(x, na.rm = TRUE)
  which(is.na(x) | x > m + coef * s | x < m - coef * s)
}

Calling it: the whole method in one screen

With the file above sourced, a complete SDA analysis — generate, select, fit, predict, compare against the first dimension — is the block below. It uses the data in data/ and reproduces the headline numbers of §3.4, and it is the only code a reader needs in order to apply the method to their own tables.

source("R/02-sda-core.R")          # the method: no package required

## 1. Data ------------------------------------------------------------------
pts  <- read.csv("data/obs.csv")     # samples: Lon, Lat, Cr_ppm
grd  <- read.csv("data/grids.csv")   # grid: Lon, Lat, Elevation
pts$y <- log(pts$Cr_ppm)             # right-skewed response

## 2. Build the second dimension --------------------------------------------
## One variable per (searching range b, quantile tau); 5 x 11 = 55 per surface.
elev <- sda_variables(pts[, c("Lon", "Lat")],
                      grd[, c("Lon", "Lat")], grd$Elevation,
                      distbuf = c(1, 3, 5, 7, 9),
                      quantileprob = seq(0, 1, 0.1))[, -(1:2)]

## The published case uses eight surfaces; seven are supplied pre-generated.
surfaces <- c("Elevation","Slope","Aspect","Water","NDVI","pH","SOC","Road")
x <- lapply(surfaces, function(v)
       read.csv(sprintf("data/reference/sda-%s.csv", tolower(v))))
names(x) <- surfaces

## 3. Split, and drop outliers from the TRAINING response only ---------------
set.seed(100)
train <- sample(nrow(pts), floor(0.7 * nrow(pts)))
krm   <- sda_rmoutlier(pts$y[train])          # 2.5 SD
keep  <- if (length(krm)) train[-krm] else train
ytr   <- pts$y[keep]; yte <- pts$y[-train]

## 4. Select on the training data, then align the test data ------------------
sel  <- sda_select(ytr, lapply(x, function(m) m[keep, ]), ctr.vif = 10)
newx <- sda_newdata(lapply(x, function(m) m[-train, ]))[, names(sel)]

## 5. Fit, predict, and compare with the first dimension ---------------------
r2 <- function(o, p) 1 - sum((o - p)^2) / sum((o - mean(o))^2)

sda.lm <- lm(y ~ ., cbind(y = ytr, sel))
r2(yte, predict(sda.lm, newdata = newx))       # 0.3002

fda    <- read.csv("data/sample-vars-fda.csv") # the same surfaces AT the points
fda.lm <- lm(y ~ ., cbind(y = ytr, fda[keep, ]))
r2(yte, predict(fda.lm, newdata = fda[-train, ]))  # 0.2422

2.3 Project Structure & Configuration

One entry script runs the five pipeline steps, the figures, or the tests. Each step reads what the previous one wrote, so any step can be re-run after a config change.

SDA/
├── sda.html                       # this guide
├── run-all.R                      # entry point: full run, single steps, figures, test
├── R/
│   ├── 00-config.R, 01-helpers.R  # paths, IO, logging
│   ├── 02-sda-core.R              # THE METHOD — base R, no dependency
│   ├── 10-prepare-data.R          # read points and grid, transform the response
│   ├── 20-generate-sdvars.R       # build the second dimension, check against published
│   ├── 30-select-variables.R      # rank by correlation, drop collinearity
│   ├── 40-cross-validation.R      # SDA vs FDA, linear model and random forest
│   ├── 50-buffer-sensitivity.R    # which searching range carries the signal
│   ├── 90-tables.R                # LaTeX tables + session info
│   └── p01 … p03                  # figure scripts
├── config/project-config.R        # the ONLY file to edit for a new domain
├── data/
│   ├── obs.csv                    # 614 samples: Lon, Lat, Cr_ppm, Cu_ppm
│   ├── grids.csv                  # 68,757 grid cells: Lon, Lat, Elevation
│   ├── sample-vars-fda.csv        # the eight surfaces AT the sample points
│   └── reference/sda-*.csv        # published second-dimension variables (8 x 55)
├── tests/                         # test-01 reproduces published values and selection
├── env/                           # requirements.md, session-info.txt
├── results/  tables/  figs/       # generated output, never hand-edited

Main configuration file

POINT_FILE <- "data/obs.csv"      # samples: coordinates + response
GRID_FILE  <- "data/grids.csv"    # the surface(s) covering the study area
LON <- "Lon"; LAT <- "Lat"

RESPONSE     <- "Cr_ppm"           # dependent variable
LOG_RESPONSE <- TRUE               # log-transform a right-skewed response
OUTLIER_SD   <- 2.5                # drop TRAINING values beyond this many SD

DIST_BUFFERS <- c(1, 3, 5, 7, 9)   # b, km  — how far outside the sample to look
QUANTILES    <- seq(0, 1, 0.1)     # tau    — which part of the local distribution

GRID_SURFACES  <- c("Elevation")   # surfaces to generate from GRID_FILE
REFERENCE_VARS <- c("Elevation","Slope","Aspect","Water","NDVI","pH","SOC","Road")

VIF_MAX        <- 10               # multicollinearity threshold
TRAIN_FRACTION <- 0.7
SEED           <- 100

2.4 Data Contract

SDA needs two tables. The point table is the usual one; the grid table is what makes the method possible, and it should be as dense and as wide as the study area allows — it is the information the first dimension discards.

3 Reproduction Pipeline, Results & Validation

3.1 Pipeline Execution

Five steps, three figure scripts and two test files run from one entry point. Every step writes to results/, tables/, figs/ or data/derived/ and reads what the previous step wrote.

cd SDA                     # this folder
Rscript run-all.R test     # 1. check the implementation against the published values
Rscript run-all.R          # 2. full pipeline

Rscript run-all.R 30 40    # re-run single steps (10 20 30 40 50 90)
Rscript run-all.R figures  # only the figure scripts

Project : sda-demo
Domain  : geochemical mapping (trace elements)
== Step 1/5  Prepare data ======================================
   samples: 614 rows | grid: 68757 cells (112x denser than the samples)
   response 'Cr_ppm' log-transformed (skew 1.58 -> -0.85)
== Step 2/5  Generate second-dimension variables ================
   b = {1, 3, 5, 7, 9} km  x  tau = {0, 0.1, ... 1}  ->  55 variables per surface
   Elevation  614 points x 68757 cells -> 55 variables in 2.3s
   Elevation  max |generated - published| = 2.27e-13  (identical)
   cost is linear in sample size: 0.004 s per point on this grid
== Step 3/5  Select second-dimension variables =================
   candidates: 8 surfaces x 55 variables = 440
   selected 10 of 440 variables in 0.17s
   surfaces represented: NDVI, pH, Road, SOC, Water
   strongest: pH_b9t0.9 (r = 0.508)
== Step 4/5  Cross validation: SDA against FDA =================
   SDA  linear model   R2 = 0.3002   RMSE = 0.6496
   FDA  linear model   R2 = 0.2422   RMSE = 0.6760
   SDA  random forest  R2 = 0.3325   RMSE = 0.6345
   FDA  random forest  R2 = 0.2752   RMSE = 0.6611
== Step 5/5  Sensitivity to the searching range b ==============
   best single searching range: b = 7 km (R2 = 0.3508)
Finished in 6.0 s

3.2 Reproduce the Published Values

The implementation is checked against the published method in two independent ways before any result is believed.

The generated variables are the published variables

Regenerating Elevation's 55 second-dimension variables from obs.csv and grids.csv reproduces the distributed values to 2×10⁻¹³ — floating-point noise, not a difference in method. The built-in haversine also matches geosphere to 3×10⁻¹¹ m, so the dependency-free path gives the same answer.

The selected variables are the published selection

The stronger check. Selecting from all 440 candidates returns exactly the ten variables of Fig. 5(a) of Song (2022) — the same five surfaces, at the same searching ranges, at the same quantiles. Nothing about that was fitted to match; it falls out of the correlation ranking and the VIF walk.

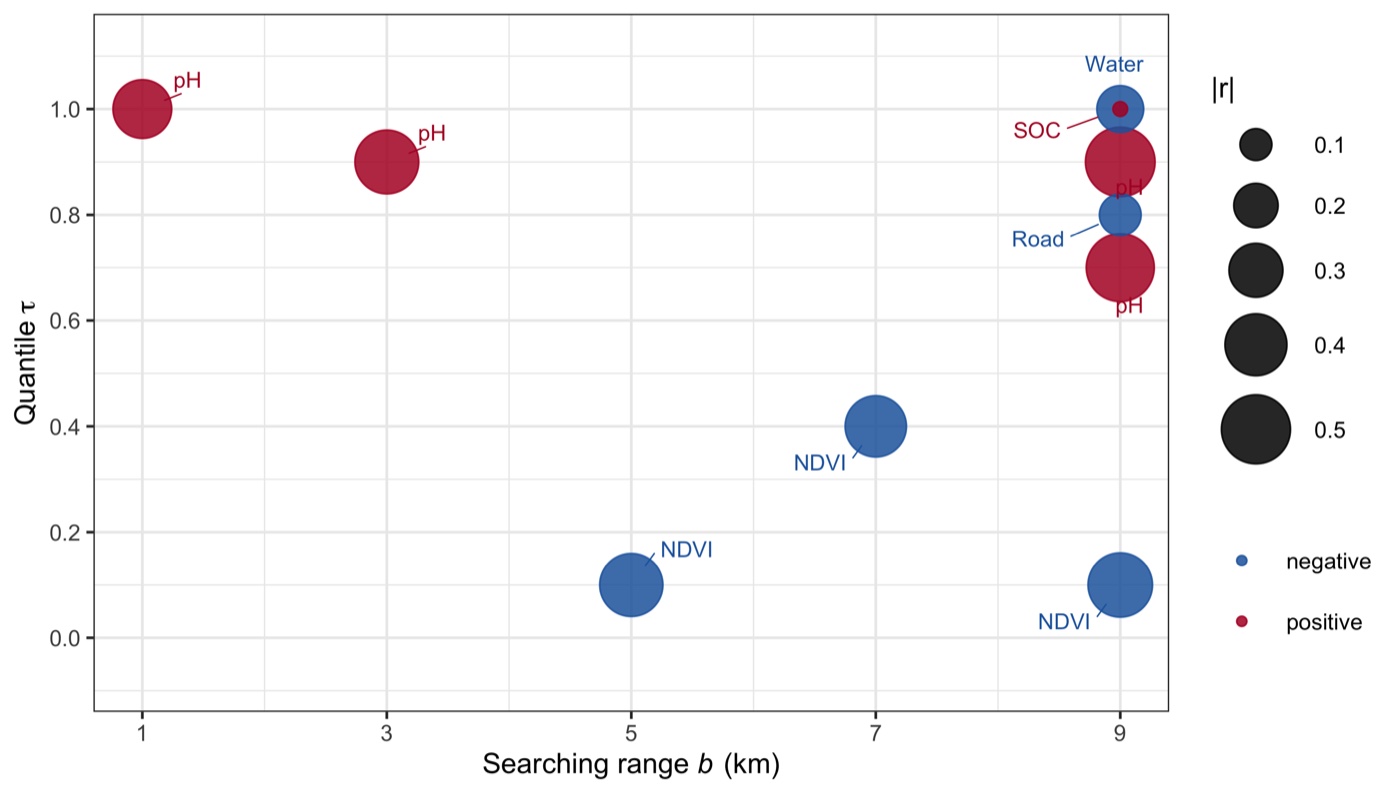

Demo run fig01 — the ten selected variables placed at their searching range and quantile, sized by |correlation| and coloured by sign.

Published reference · SDA SDA paper Fig. 5 — panel (a) is Cr, the case reproduced here. Compare the positions: pH at (1, 1.0), (3, 0.9), (9, 0.9) and (9, 0.7); NDVI at (5, 0.1), (7, 0.4) and (9, 0.1); Water, SOC at (9, 1.0); Road at (9, 0.8).

== test-01  Reproduce the published second-dimension variables ===========
   generated variable count matches the published set   pass
   generated row count matches the sample count         pass
   values identical to published (max diff 2.27e-13)    pass
   built-in haversine matches geosphere (< 1e-6 m)      pass
   selection returns 10 variables, as published         pass
   the selected variables are exactly those of Fig. 5(a) pass
   PASS - the implementation reproduces the published method

== test-02  Method properties ============================================
   quantile 0 never exceeds quantile 1                      pass
   VIF equals 1/(1 - SSE/SST), not the fitted-value variant pass
   every kept column carries the values of the variable it names pass
   held-out predictions stay in the range of the response   pass
   ...
   15 passed, 0 failed

3.3 Core Analytical Steps

Five stages: purpose → code → output → result → how to read it. The step numbers match the script numbers (Step 2 is R/20-generate-sdvars.R).

Rscript run-all.R 10

== Step 1/5  Prepare data ======================================
   samples: 614 rows | grid: 68757 cells (112x denser than the samples)
   grid surfaces available: Elevation
   response 'Cr_ppm' log-transformed (skew 1.58 -> -0.85)
   response y: mean=4.963 sd=0.826 range=[0.000, 6.955]
   wrote data/derived/points.csv (614 rows)

Step 2 · the method

Build the second dimension

What this step does

For every sample, distances to all 68,757 grid cells; for each searching range, the cells inside; for each quantile, one summary. 5 × 11 = 55 variables per surface. The result is compared against the published values, and the cost is measured at three sample sizes so a methods section can state how it scales.

Code

R — the call, from R/20-generate-sdvars.R

z <- sda_variables(pts[, c(LON, LAT)],          # sample coordinates
                   grd[, c(LON, LAT)], grd[[v]], # grid coordinates + surface
                   distbuf      = DIST_BUFFERS,  # c(1, 3, 5, 7, 9) km
                   quantileprob = QUANTILES)     # seq(0, 1, 0.1)

terminal

Rscript run-all.R 20

Example output

Console output

== Step 2/5  Generate second-dimension variables ================
   b = {1, 3, 5, 7, 9} km  x  tau = {0, 0.1, ... 1}  ->  55 variables per surface
   Elevation  614 points x 68757 cells -> 55 variables in 2.3s
   wrote data/derived/sdvars-generated.csv (614 rows)
   Elevation  max |generated - published| = 2.27e-13  (identical)
   cost is linear in sample size: 0.004 s per point on this grid

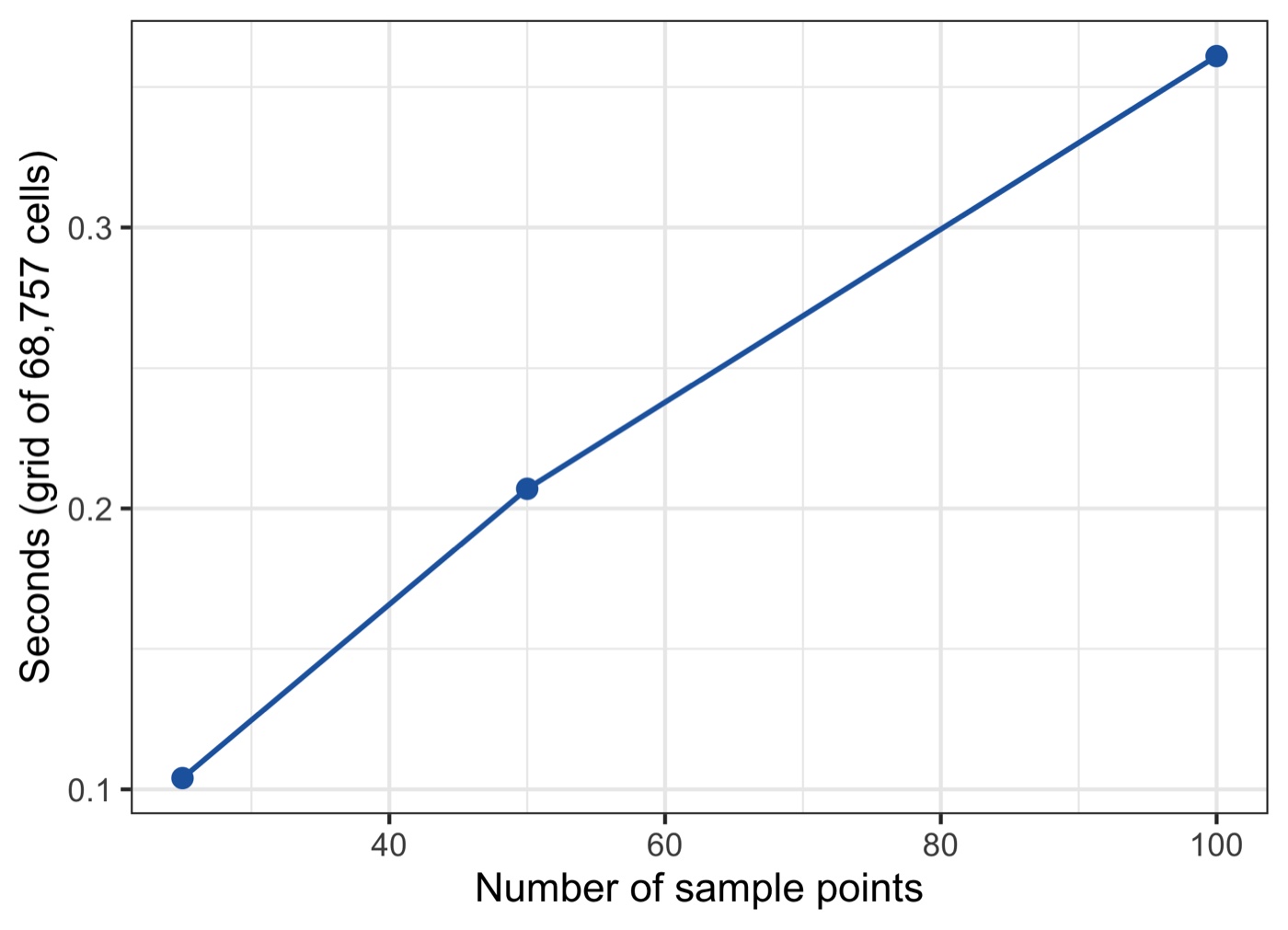

Demo run fig05 — generation time is linear in the number of samples: every sample needs one distance pass over the grid, so cost is roughly (samples × grid cells).

How to read this result

• Identical to 2×10⁻¹³ is the licence to continue. Everything downstream is a claim about the published method rather than about a lookalike.
• The cost is predictable, and it is the one thing that scales badly. 0.004 s per sample on a 68,757-cell grid, linear in samples and linear in cells. Ten thousand samples on this grid is about forty seconds per surface; a finer grid multiplies that directly, which is the trade-off to state when choosing grid resolution.
• The buffers do the reusing. One distance pass serves every buffer and every quantile, so adding more (b, τ) pairs is nearly free — it is the number of samples and cells that costs, not the number of variables.

Checkpoint

results/generation-check.csv reports identical_to_1e6 = TRUE before you trust any later number.

krm <- sda_rmoutlier(pts$y, OUTLIER_SD)         # 2.5 SD
y   <- pts$y[-krm]
x   <- lapply(xall, function(m) m[-krm, , drop = FALSE])
sel <- sda_select(y, x, ctr.vif = VIF_MAX)      # 440 -> 10

== Step 3/5  Select second-dimension variables =================
   candidates: 8 surfaces x 55 variables = 440
   removed 5 outlier(s) beyond 2.5 SD
   selected 10 of 440 variables in 0.17s
   surfaces represented: NDVI, pH, Road, SOC, Water
   buffers chosen: 1, 3, 5, 7, 9 km | quantiles chosen: 0.1, 0.4, 0.7, 0.8, 0.9, 1
   strongest: pH_b9t0.9 (r = 0.508)

Step 4 · the core result

Cross validation — does the second dimension actually predict better?

What this step does

The same samples, the same 70/30 split, the same two models; only the explanatory variables differ. Selection runs on the training set alone, and the test matrix is built with sda_newdata() so the model reads the variables it was fitted on.

Code

R — from R/40-cross-validation.R

sel  <- sda_select(ytr, xtr, ctr.vif = VIF_MAX)          # training only
newx <- sda_newdata(xte)[, names(sel), drop = FALSE]     # aligned test matrix

fit_eval("SDA", "linear model",  lm(y ~ ., cbind(y = ytr, sel)), newx)
fit_eval("FDA", "linear model",  lm(y ~ ., cbind(y = ytr, ftr)), fte)
fit_eval("SDA", "random forest", randomForest(x = sel, y = ytr), newx)
fit_eval("FDA", "random forest", randomForest(x = ftr, y = ytr), fte)

Example output

Dimension	Model	Variables	R²	RMSE
SDA	linear model	9	0.3002	0.6496
FDA	linear model	8	0.2422	0.6760
SDA	random forest	9	0.3325	0.6345
FDA	random forest	8	0.2752	0.6611

results/cross-validation.csv — 185 held-out samples. SDA improves R² by 23.9% for the linear model and 20.8% for the random forest, and lowers RMSE in both.

Demo run fig02 — the same test samples under both dimensions. The SDA clouds sit closer to the 1:1 line and their fitted slopes are steeper.

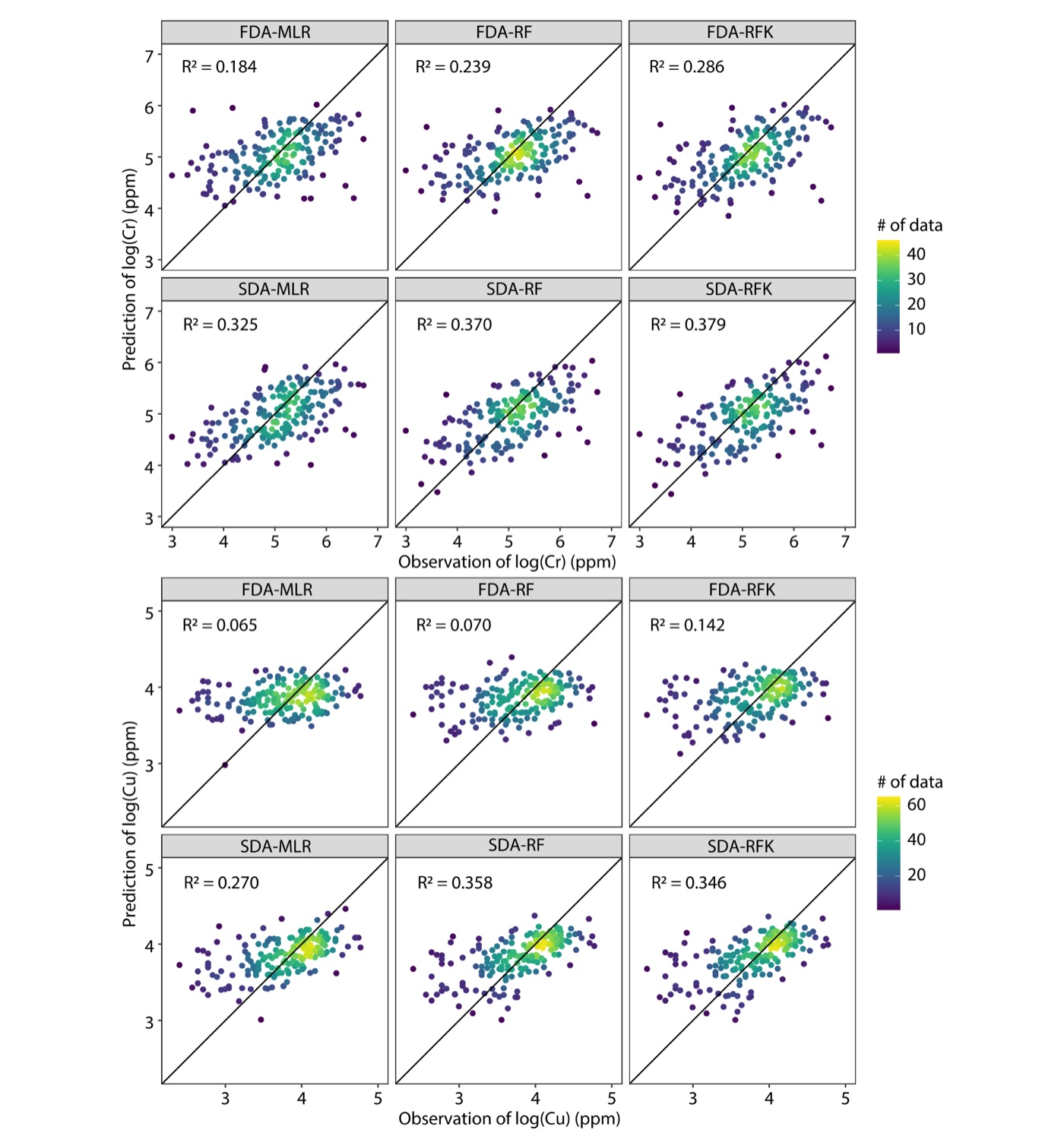

Published reference · SDA SDA paper Fig. 6 — the published counterpart, for Cr (top block) and Cu. Every SDA panel beats its FDA panel: for Cr, MLR 0.184 → 0.325, RF 0.239 → 0.370, RFK 0.286 → 0.379.

How to read this result

• The comparison is unusually clean. FDA is SDA at zero searching range, so this is one method against its own restriction. The gap is what the neighbourhood adds, not what a different model adds.
• The gain survives a change of model. Linear +23.9%, random forest +20.8%. A benefit that appears only under one learner is usually a quirk of that learner; this one is in the variables.
• Nine variables beat eight. The improvement is not from having more columns — the counts are nearly the same. It is from those columns describing neighbourhoods instead of points.
• Absolute R² stays modest, and that is honest. ≈0.33 on held-out samples for soil geochemistry from environmental surfaces alone. The published case reaches 0.325–0.379 for Cr with the same structure. SDA moves a weak predictor to a less weak one; it does not manufacture a strong one.

Checkpoint

Predictions must land in the range of the response. If they run to hundreds, the test matrix is misaligned with the fitted model — the failure mode described in §2.2, and the reason sda_newdata() exists.

Step 5

Searching range — how far outside the samples is worth looking?

What this step does

b is the parameter that defines "outside", so it deserves a number rather than a default. The model is rebuilt using one searching range at a time, across all eight surfaces.

Code

terminal

Rscript run-all.R 50

Example output

b (km)	Variables selected	R²	RMSE
1	13	0.2428	0.6757
3	17	0.2638	0.6663
5	15	0.3430	0.6294
7	10	0.3508	0.6256
9	5	0.3339	0.6337

results/buffer-sensitivity.csv — each row uses only the variables generated at that searching range.

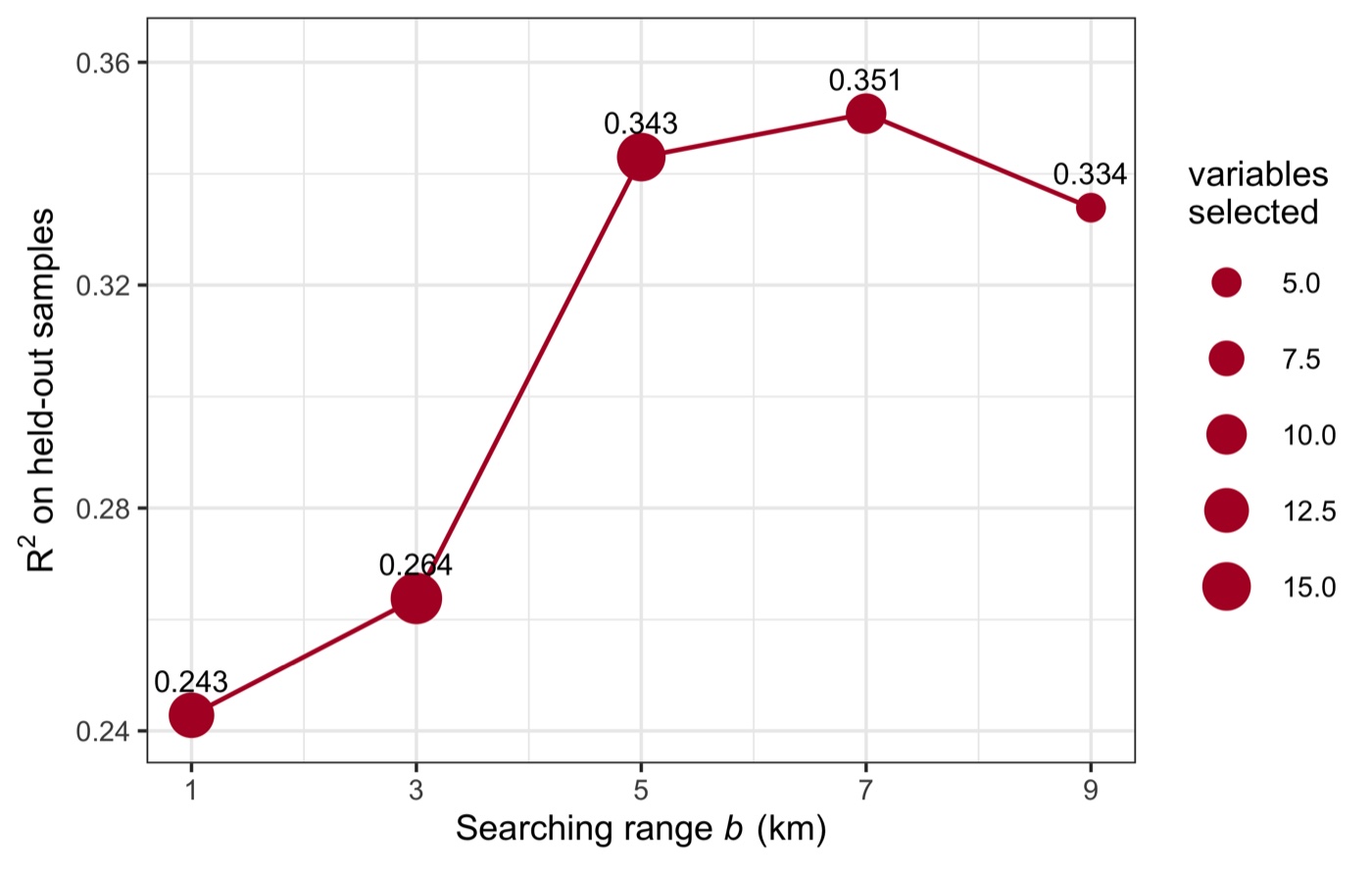

Demo run fig04 — R² against the searching range, point size showing how many variables survived selection at that range.

How to read this result

• This is the method's own argument, measured. At b = 1 km the neighbourhood is barely wider than the sample and R² = 0.243 — statistically the same as the first dimension's 0.242. Widen to 7 km and it reaches 0.351. The gain comes from distance, not from having more columns.
• It turns over. 9 km is worse than 7 km: eventually the circle averages over land that has nothing to do with the sample. There is a scale that matches the process, and this curve is how you find it rather than assume it.
• Fewer variables survive at wide ranges. 13 at 1 km, 5 at 9 km — wide neighbourhoods overlap between samples, so their variables are more collinear with one another and the VIF walk discards more.
• Report this curve. A single b with no sensitivity analysis is the first thing a reviewer will question, and it costs one step to answer.

3.4 Reading the Results Together

Three findings, one argument: the information outside the samples is real, it is reachable, and it is worth the cost of reaching it.

Demo run fig03 — the headline, both models: the second dimension is ahead of the first whichever learner is used.

4 Adaptation, Writing & Reproducibility

4.1 Port to Your Domain

Nothing in the method is specific to geochemistry. It needs a response at points and at least one dense surface covering the area; the family shows how far that travels:

Published reference · ESDA The explainable branch: second-dimension variables fed to a machine-learning model and read with interpretation tools, so the effect of each (b, τ) can be inspected rather than only scored.

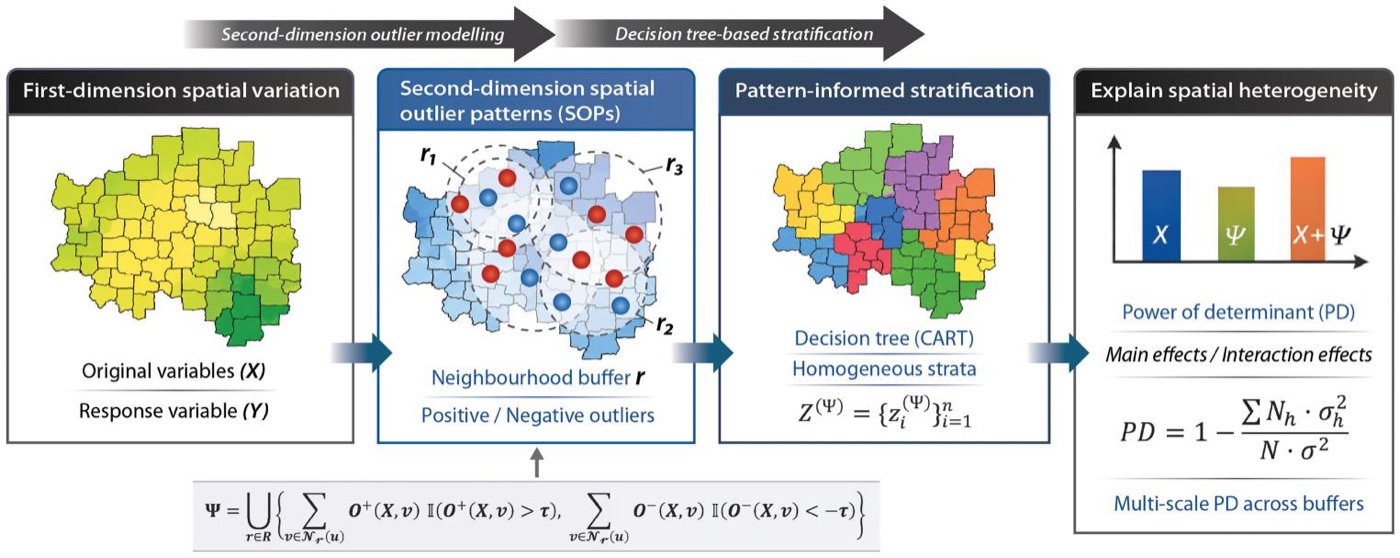

Published reference · SOH The heterogeneity branch: second-dimension outlier patterns used to explain spatial heterogeneity, with its own tutorial in this series.

What to edit

1. config/project-config.R — POINT_FILE, GRID_FILE, the coordinate and response column names, and GRID_SURFACES for every surface your grid carries. Set REFERENCE_VARS to those same surfaces so the pipeline uses what it generates rather than the demo's pre-generated sets.
2. DIST_BUFFERS — the ranges to search, in km. Start from the scale of the process, not from this demo's values, and let Step 5 tell you which range carries the signal.
3. Nothing else. Run Rscript run-all.R test, then Rscript run-all.R, and read results/selected-parameters.csv before drafting.

4.2 Write the Paper

The published applications share one architecture: a Methods section that defines the second-dimension variable and states (b, τ), a Results section that mirrors the pipeline, and every number pulled from a results/ file.

Manuscript skeleton (shared by the published applications)

1  Introduction       — spatial association from sample values; the information
                         outside samples; the contribution (3 aims)
2  SDA model          — 2.1 First and second dimensions (concept, no case data)
                         2.2 Second-dimension variables X^{b,tau} (all formulas)
                         2.3 Variable selection (correlation ranking, VIF)
                         2.4 Modelling and validation design
3  Case & data        — study area, response, surfaces, grid resolution
4  Results            — 4.1 selected variables in (b, tau) space
                         4.2 SDA against FDA, more than one model
                         4.3 sensitivity to the searching range
                         4.4 spatial prediction over the grid
5  Discussion         — the scale of the neighbourhood; why those quantiles;
                         computational cost; what SDA does not do
6  Conclusions        — 6-8 sentences answering the aims

Results-to-manuscript map

4.3 Final Reproducibility Package

References & credits

Demo outputs were generated by the scripts in this folder. Reference figures are reproduced from the cited articles for comparison; the SDA article is open access under CC BY-NC-ND, and the remaining figures are © their authors and publishers. The method implementation follows the author's SecDim package, with the two corrections described in §2.2.

1. Song Y (2022). The second dimension of spatial association. International Journal of Applied Earth Observation and Geoinformation 111:102834. doi:10.1016/j.jag.2022.102834 · PDF (source of the concept, schematic, Fig. 5 and Fig. 6 reference images, and of the case reproduced here)
2. Song Y (2023). SecDim: The Second Dimension of Spatial Association. R package version 3.2. CRAN archive (the reference implementation and the source of the demo data)
3. Wang X, Wu Y, Shi T, Zhang R, Chen Y, Song Y (2026). Explainable second-dimension spatial association between park sentiment and built-social environments. PDF
4. Ren K, Song Y, Yu Q (2025). Second-dimension outliers for spatial prediction. International Journal of Geographical Information Science. PDF
5. Ren K, Song Y, Yang X, Wang X, Chen M, Yu Q (2026). Spatial outliers as a pattern determinant for explaining heterogeneity. International Journal of Geographical Information Science. PDF · code · tutorial
